About synchronizing schemas

Updated: January 30, 2026

About the synchronization process

Synchronizing schemas is the process of updating the metadata of a registered data source in Collibra Platform.

After you have registered a data source via Edge, Data Catalog connects to your Edge site to create a list of schemas from the registered database. You can see the list on the Configuration tab page of the Database asset page.

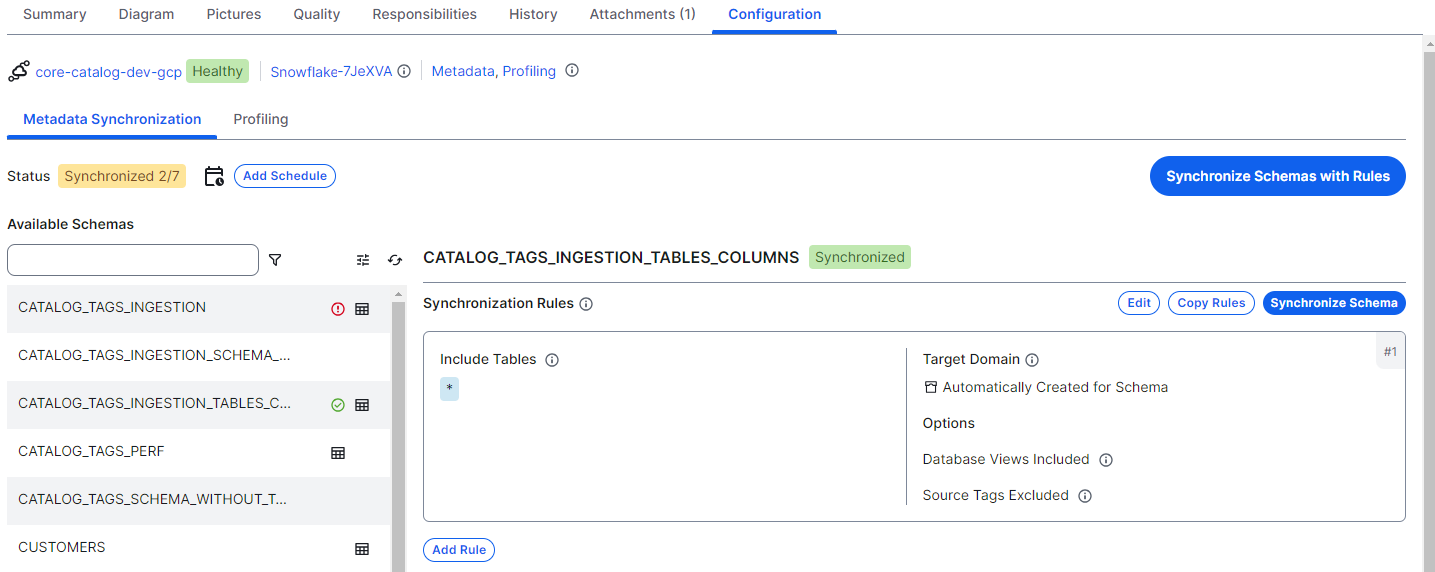

On this Configuration tab page, you configure and start the synchronization of schemas in the database.
You can then synchronize a schema manually or automatically at fixed intervals:

Synchronize manually if you want to test the synchronization of your data source or if you want to synchronize immediately.
Synchronize automatically if the content of the data source changes regularly.

Tip Before starting the synchronization, we recommend to click the Refresh List icon to get the latest schema information from the data source.

What happens during synchronization

The Edge site connects to your data source and ingests schemas, tables, columns, and foreign keys according to the defined synchronization rules.
Edge detects whether there are changes since the last synchronization of a schema and resolves the possible conflicts in the following way.

Note The scalable ingestion flow has been rolled out for commercial customers. It enhances the synchronization for JDBC data sources via Edge and processes data much faster, especially for large schemas. The scalable ingestion flow doesn't use Import, so you won't see any Import jobs in the Activities page.

Change in data source

Change in data source	Result in Collibra for commercial customers	Result in Collibra for Collibra Platform for Government customers	Required action
A table, column or foreign key has been added to the schema.	Collibra creates the assets. Note If a table is empty, Collibra creates only the Table asset, without any Column assets	Collibra creates the assets. Note If a table is empty, Collibra creates only the Table asset, without any Column assets	No action is required of you.
A table, column or foreign key has been removed from the schema.	The existing asset gets the Missing from source status. If it concerns a table, also the related Column assets get the Missing from source status. This process is called soft delete. Note If all the content has been removed from the schema, go to "a schema is empty”.	The existing asset gets the Missing from source status. If it concerns a table, also the related Column assets get the Missing from source status. This process is called soft delete. Note If all the content has been removed from the schema, we don't update any existing assets in Collibra. Go to "a schema is empty” for more information.	If needed, you can manually delete the assets.
A schema is empty.	If the schema is empty during the first sync, Collibra creates only a Schema asset. If the schema previously contained tables and is completely empty during a resync, the assets get the status Missing from source.	If the schema is empty during the first sync, Collibra creates only a Schema asset. If the schema previously contained tables and is completely empty during a resync, Collibra doesn't update any existing assets. Example: You synchronized a schema with tables and columns. As a result, Table and Column assets are created in Collibra. You then remove all tables and columns from the data source and you synchronize the schema again in Collibra. Because the schema is empty, the schema is not synchronized and the status of the existing assets in Collibra isn't updated to Missing from source.	If needed, you can manually delete the assets.
A schema has been removed.	The schema gets the Missing from source status. Also the related Table and Column assets get the Missing from source status. This process is called soft delete.	If you have refreshed the schema list before the synchronization, the schema gets the Missing from source status. Also the related Table and Column assets get the Missing from source status. This process is called soft delete.	If needed, you can manually delete the Schema asset and all related assets.
A column or foreign key has been renamed.	Collibra creates an asset with the new name. The existing asset get the Missing from source status. This process is called soft delete. Note If a column has no name in a schema, synchronization fails with the `java.lang.IllegalArgumentException: tableName was found null` error. Provide a name for the column or exclude the column from the ingestion.	Collibra creates an asset with the new name. The existing asset get the Missing from source status. This process is called soft delete.	If needed, you can apply any manual changes you made to the original asset, to the new asset. And then remove the assets that are no longer applicable.
A table has been renamed.	Collibra creates a Table asset with the new name. Collibra also creates new Column assets for the new Table asset. The existing Table and related Column assets get the Missing from source status. This process is called soft delete. Note If a table has no name in a schema, synchronization fails with the `java.lang.IllegalArgumentException: tableName was found nul` error. Provide a name for the table or exclude the table from the ingestion.	Collibra creates a Table asset with the new name. Collibra also creates new Column assets for the new Table asset. The existing Table and related Column assets get the Missing from source status. This process is called soft delete.	If needed, you can apply any manual changes you made to the original assets, to the new assets. And then remove the assets that are no longer applicable.
A schema has been renamed.	Collibra creates a Schema asset with the new name. Collibra also creates new Table and Column assets for the new Schema asset. The existing schema and related assets get the Missing from source status. This process is called soft delete.	Collibra creates a Schema asset with the new name. Collibra also creates new Table and Column assets for the new Schema asset. If you have refreshed the schema list before the synchronization, the existing schema and related assets get the Missing from source status. This process is called soft delete.	If needed, you can apply any manual changes you made to the original assets, to the new assets. And then delete the assets that are no longer applicable.

Important
You can't use the include table or exclude table rules to synchronize in batches or to synchronize only a selected list of tables. When you register a table and later exclude it using these rules during resynchronization, the related assets get the Missing from Source status. Example: During the first synchronization, you include table A and table B, so assets are created for them. During the next synchronization, you include only table C. As a result, assets for table C are created, and the assets for table A and table B show the Missing from Source status.

Note

If you rename a database in the data source, the Edge synchronization process treats it as a new database. The existing Database asset is marked with the Missing from source status. You must create a new Database asset through a new data source registration.
Schema, Table, Column or Foreign Key assets with the Missing from source status don't block the synchronization process.
In the asset diagram, assets with the Missing from source status are shown by default. If you don't want to see these assets, apply a filter to the diagram view to only display assets with valid statuses.

Change in Collibra

Change in Collibra	Result in Collibra for commercial customers	Result in Collibra for Collibra Platform for Government customers
In Collibra, you update asset characteristics that are controlled by the metadata synchronization.	To increase performance, Collibra doesn't update the asset characteristics during a resync unless changes are detected at the data source.	Collibra updates the asset characteristics with the data source values during a resync.
In Collibra, you update asset characteristics that are not controlled by the metadata synchronization.	Collibra doesn't update the asset characteristics that are not controlled by the metadata synchronization during a resync.	Collibra doesn't update the asset characteristics that are not controlled by the metadata synchronization during a resync.
In Collibra, you removed one, more, or all assets for a Schema asset, or you have removed the entire Schema and its assets.	Collibra recreates all assets during a resync.	Collibra recreates all assets during a resync.
In Collibra, you changed the scope of tables to be included in the synchronization via include tables or exclude tables rules.	If a table is no longer in the synchronization scope during a resync, its registered assets get the Missing from Source status.	If a table is no longer in the synchronization scope during a resync, its registered assets get the Missing from Source status.
In Collibra, you used asset views to move registered assets to a domain other than the domain specified in the synchronization rule.	Assets are moved back to the specified target domain during the next sync only if changes to the assets are detected in the data source.	Assets are moved back to the specified target domain during the next sync.

Collibra creates assets in the selected target domains.
- The created assets get a unique full name (fully qualifying name) based on naming conventions.
  You can view the full name of an asset by editing the asset.
  Warning Don't edit the full name of an asset. This is because the full name is used to synchronize or refresh data sources. Changing the full name may cause unexpected results and break the synchronization or refresh process.
- The status of a created asset depends on its asset type. The first status in the asset type's assignment is applied to the new asset.
- If, in the synchronization rule, you have indicated you want to include source tags, the tags defined on the assets in the data source are registered and available from the Schema, Table, Database View, and Column assets in the Source Tags attribute. For more information, go to About source tags.
  Note Currently, the JDBC registration process can synchronize source tags only from Snowflake via this method.
  For information on synchronizing the source tags from Databricks Unity Catalog, go to Add the Databricks Unity Catalog capability.
The synchronization jobs of all schemas run in parallel. You can see the synchronization status in the Activities list. A report is created:
- during the synchronization, to show the progress of the synchronization job.
- after the synchronization, to show the synchronization logs for each synchronized schema.
You can also follow up on the synchronization jobs via the database synchronization report (in preview).

What happens after synchronization

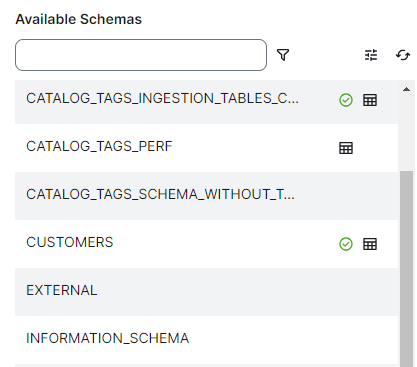

A check symbol () is available next to the schema name.
If the synchronization of a schema fails or the schema is no longer available in the source, an exclamation mark () is shown instead.
The synchronized data becomes available. To see which data is added, go to Metadata synchronization results.

Tip If you no longer want to synchronize a schema, and delete the associated assets, go to Remove a synchronized schema.

About synchronization rules

A synchronization rule determines which tables of a schema you synchronize in Data Catalog.

If you add multiple rules for a schema, the order is important. The number of allowed synchronization rules is limited by the Maximum number of ingestion rules setting.
For all information, go to Configure the synchronization of a data source.
The Schema asset and the Foreign Key assets are always ingested in the domain defined in the first rule.
Only schemas that have at least one synchronization rule can be synchronized.
If a schema has a synchronization rule, you see a table icon () next to the schema name.
Synchronization rules can be added, edited, and copied to other schemas in the same data source.

The following table shows fields of synchronization rules:

Rule field	Description
Include Tables	A comma-separated list of the names of the tables you want to synchronize. In the list, add a space after each comma. For example, `CUSTOMERS, ORDER, SKU`. Don’t add new lines to the list. Only add comma-separated values. This field is not case-sensitive. You can use `` as a wildcard. For example, `SKU`. The default value is ``, which means all tables are taken into account. If the name of a table contains a special character, like . + \ ? ^ $ ( ) [ ] { } \| then add a \ before the special character for it to be correctly evaluated. For example, `SKU\+`. The Include Tables field is processed before the Exclude Tables field. Example Out of all tables in a schema, you only want to synchronize the table with name "CUSTOMERS" and the tables with a name that starts with "ORDER". To do this: In the Include Tables field, enter: `CUSTOMERS, ORDER`. Out of all tables in a schema, you only want to synchronize the tables with a name that contains "SKU". To do this: In the Include Tables field, enter: `SKU`. Out of all tables in a schema, you only want to include the tables with a name that contains "SKU+". To do this: In the Include Tables field, enter: `SKU\+*`.
Exclude Tables	A comma-separated list of the names of the tables you do not want to synchronize. In the list, add a space after each comma. For example, `CUSTOMERS, ORDER, SKU`. Don’t add new lines to the list. Only add comma-separated values. This field is not case-sensitive. You can use `` as a wildcard. If the name of a table contains a special character, like . + \ ? ^ $ ( ) [ ] { } \| then add a \ before the special character for it to be correctly evaluated. For example, `SKU\+`. The Include Tables field is processed before the Exclude Tables field. You can use exclude to do the following: Synchronize all tables in a schema except the ones defined in the Exclude Tables field. Synchronize only tables as defined in the Include Tables field, with the exception of tables that are listed in the Exclude Tables field. Example Out of all tables in a schema, you do not want to synchronize a table with the name "ADDRESS" and tables with a name that ends with "PHONE". To do this: In the Include Tables field, enter: `` and in the Exclude Tables field, enter: `ADDRESS, PHONE`. Out of all tables in a schema, you only want to exclude the table with name "example$table". To do this: In the Include Tables field, enter: `` and in the Exclude Tables field, enter: `example\$table`. Out of all tables in a schema, you want to synchronize the tables with a name that starts with "SKU", but exclude the tables with a name that contains "bkp". To do this: In the Include Tables field, enter: `SKU` and in the Exclude Tables field, enter: `bkp`. From the following list, only "SKU_1" and "SKU_2" will be synchronized. SKU_1 , SKU_2, SKU_bkp_1, SKU_bkp_2, New, bkp, bkp_SKU
Target Domain	The Physical Data Dictionary domain in which the schema is synchronized. The default value is Automatically Created for Schema. This means the metadata is placed in a domain located in the same community as the domain of your Database asset. If that domain doesn't exist yet, Data Catalog creates the domain using the following naming convention: [edge_connection_name] > [database_name] > [schema_name], for example Snowflake Connection > CERTIFICATION > CUSTOMERS. You can select any other Physical Data Dictionary domain for which you have a resource role with the Configure External System resource permission. It is advised, however, to have a domain per schema. Note Use this method to move assets from one domain to another. Don't move assets through asset views.
Options	Additional options to specify which type of tables you want to synchronize.
Exclude Database Views	A checkbox to exclude database views from the synchronization process. If selected, no assets of the type Database view are created. Tip You can also use Include Tables and Exclude Tables to include or exclude specific database views.
Include Source Tags	If you select this option, the tags defined on the assets in the data source are registered and available from the Schema, Table, Database View, and Column assets in the Source Tags attribute. Note Currently, the JDBC registration process can synchronize source tags only from Snowflake via this method. For information on synchronizing the source tags from Databricks Unity Catalog, go to Add the Databricks Unity Catalog capability.
Include Data Usage Statistics	If you select the Include Data Usage Statistics option, the data usage statistics of the assets in the data source are ingested, a popularity score is calculated, and the information is made available for Table, View, and Column assets. The information includes: The number of queries. The number of users. A popularity score that indicates how often an asset is used in queries on the source system compared to other assets with ingested data usage statistics in Data Catalog. For more information, go to About data usage statistics and popularity score. Important Currently, the JDBC registration process can synchronize the data usage statistics and calculate a popularity score only for Snowflake. This feature is available only in the latest UI for Commercial Cloud customers and when the scalable ingestion flow is enabled. The popularity score of an asset is recalculated twice a day and takes the data usage statistics of the last 30 days of the last gathered information into account.

About source tags

Tags created and assigned in the data source can be registered and synchronized in Data Catalog. To allow this, select the Include Source Tags checkbox when you define the synchronization rule for a schema. This ensures that the tags defined on the assets in the data source are registered and available from the Schema, Table, Database View, and Column assets in the Source Tags attribute.

Note Currently, the JDBC registration process can synchronize source tags only from Snowflake via this method.
For information on synchronizing the source tags from Databricks Unity Catalog, go to Add the Databricks Unity Catalog capability.

The naming convention for source tags synchronized from Snowflake is:
- <source_tag_name>=<source_tag_value>, for example: cost_center=sales.
- <source_tag_name>, if no values are assigned to the tag, for example PII.
We apply the same inheritance for source tags as the data source.
Example
- If a tag was assigned to a schema in Snowflake, the tag will be registered for the related Schema, Table, Column and View assets in Data Catalog.
- If a tag was assigned to an account in Snowflake, the tag will be registered for the related Schema, Table, Column and View assets in Data Catalog.
For information on tags in Snowflake, go to the Snowflake documentation.
Don't change the source tags in Data Catalog, as the changes are not pushed to the data source. If you make changes to the tags in the data source and synchronize the data source again, your updates will be overwritten with the information from the data source.

By default, we read the Snowflake source tags from the <database_name>.INFORMATION_SCHEMA.tag_ references. This is possible with the minimum required permissions for the metadata scan.
To increase the performance of the Snowflake metadata synchronization, we can also read the Snowflake source tags from the SNOWFLAKE.ACCOUNT_USAGE schema. This can be configured in the Edge JDBC Ingestion capability as an other property with name tags-strategy and value SINGLE_CALL. Note that this method requires the SELECT permission on the SNOWFLAKE.ACCOUNT_USAGE.TAG_REFERENCES table.
