Technical lineage stitching status

Important 

We launched a new user interface (UI) for technical lineage viewer, which is in public preview.

Use the following options to see the documentation for the latest or classic technical lineage viewer UI:

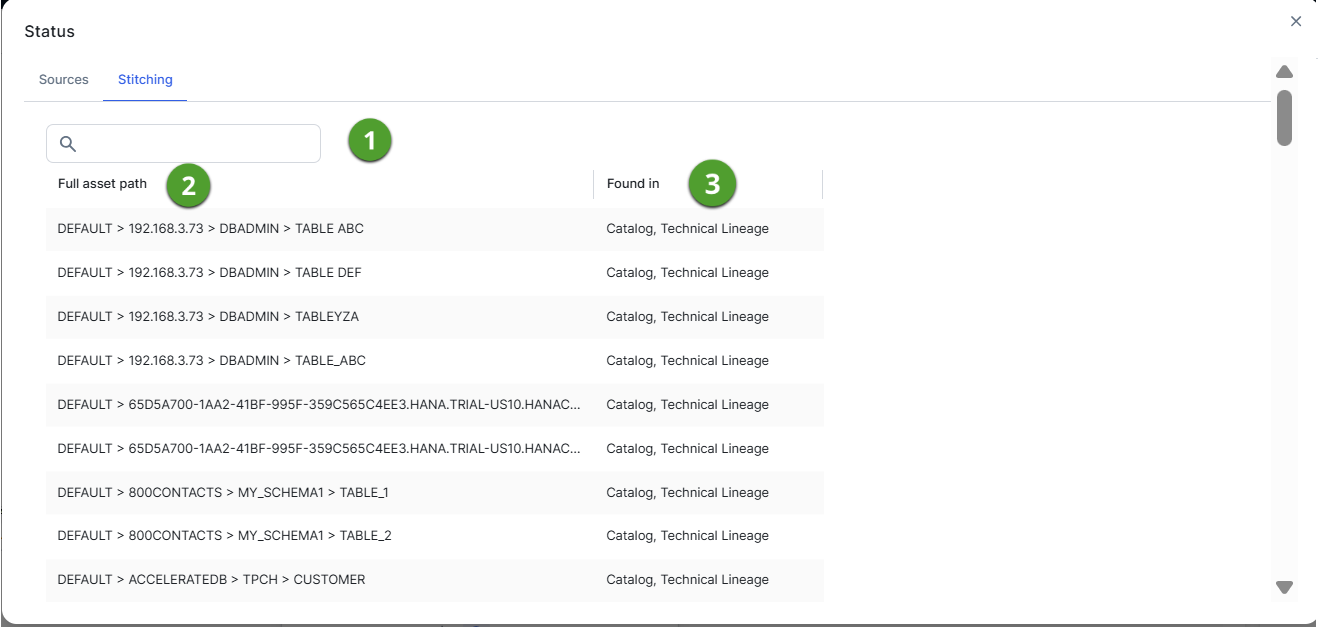

The Stitching pageStitching tab pane shows the full path of assets in Data Catalog and data objects of the data sources for which you created a technical lineage. You can use it to easily check which assets are stitched and which are not.

You can access the Stitching tab pane by clicking the Trending up icon View status button on the Browse pane and select the Stitching tab pane from the Status pane.

You can access the Stitching tab page by clicking Show status on the Settings tab pane.

No

 Name Description

Search field

A search field to find specific assets or data objects. Type what you are looking for and press Enter.

Full asset path The full path to all data objects on Collibra Data Lineage service and all assets in Data Catalog.

Found in

The location where the asset or data object was found. There are three possible locations:

  • Data Catalog: The asset was found in Data Catalog, but it does not match the full path of a data object on the Collibra Data Lineage service. As a result, there is no technical lineage created for this asset.
  • Technical lineage: The data object was found in the data source for which you created a technical lineage, but it does not match the full path of an asset in Data Catalog. As a result, the data object is shown in technical lineage with a gray background.
  • Data Catalog & technical lineageData Catalog, technical lineage: An asset and a data object with the same full path were found in Data Catalog and on the Collibra Data Lineage service. As a result, they were stitched and are shown in technical lineage with a yellow background.
Note In Collibra, full paths are case-sensitive.

Show lineage

The button to go back to the technical lineage graph.
