The Azure AI Foundry integration asset types are included out of the box with your Collibra Platform.
Important The functions of the Azure AI Foundry integration are limited if you do not enable AI Governance. When you enable AI Governance, you can add custom attributes or custom relations, for example, AI Model Version, to the Azure AI Foundry assets.
| Asset type | Description |
|---|---|
| AI Base Model | Represents foundational business concepts that define the model’s purpose and governing principles in your Azure AI Foundry workspace. |
| Azure AI Foundry Model Version |
A subtype of AI Model Version that represents AI model versions in Azure AI Foundry. |
| AI Model Deployment | The operational instance where a model version is assigned computational resources to execute and generate real-time outputs. |
| Azure AI Foundry Project | A subtype of AI Project that represents Azure AI Foundry projects. |
| Azure AI Foundry Agent | A subtype of AI Agent that represents AI agents in Azure AI Foundry. |
| AI Agent |
An autonomous system that perceives its environment, makes decisions based on predefined rules or learned patterns, and takes actions to achieve specific goals. Agents synchronized from Microsoft Copilot Studio are created as AI Agent, AI Agent Version, and AI Agent Tool assets. |
| AI Agent Version |
A specific, immutable implementation of the model logic and parameters that serves as the audited "raw" model version before it is activated. For Azure AI Foundry, AI agents always have a single version. |
| AI Agent Tool |
A service accessible to an AI agent that automates tasks, generates content, or delivers intelligent insights. |
| AI Endpoint | The access point for external systems that provides a consistent interface while allowing for the seamless exchange of underlying deployments. |
| AI Monitor | The configuration of automated tracking parameters and alerting thresholds used to observe a deployment’s real-world performance and detect deviations from expected behavior. |
| File | Represents the dataset files used to fine-tune your AI base models Azure AI Foundry workspace. This asset is optional, you can ingest this data during the integration by selecting the Do you want to create file assets? checkbox. |
| Storage Container | Represents the folder that contains the dataset files used to fine-tune your AI base models Azure AI Foundry workspace. This asset is optional, you can ingest this data during the integration by selecting the Do you want to create file assets? checkbox. |

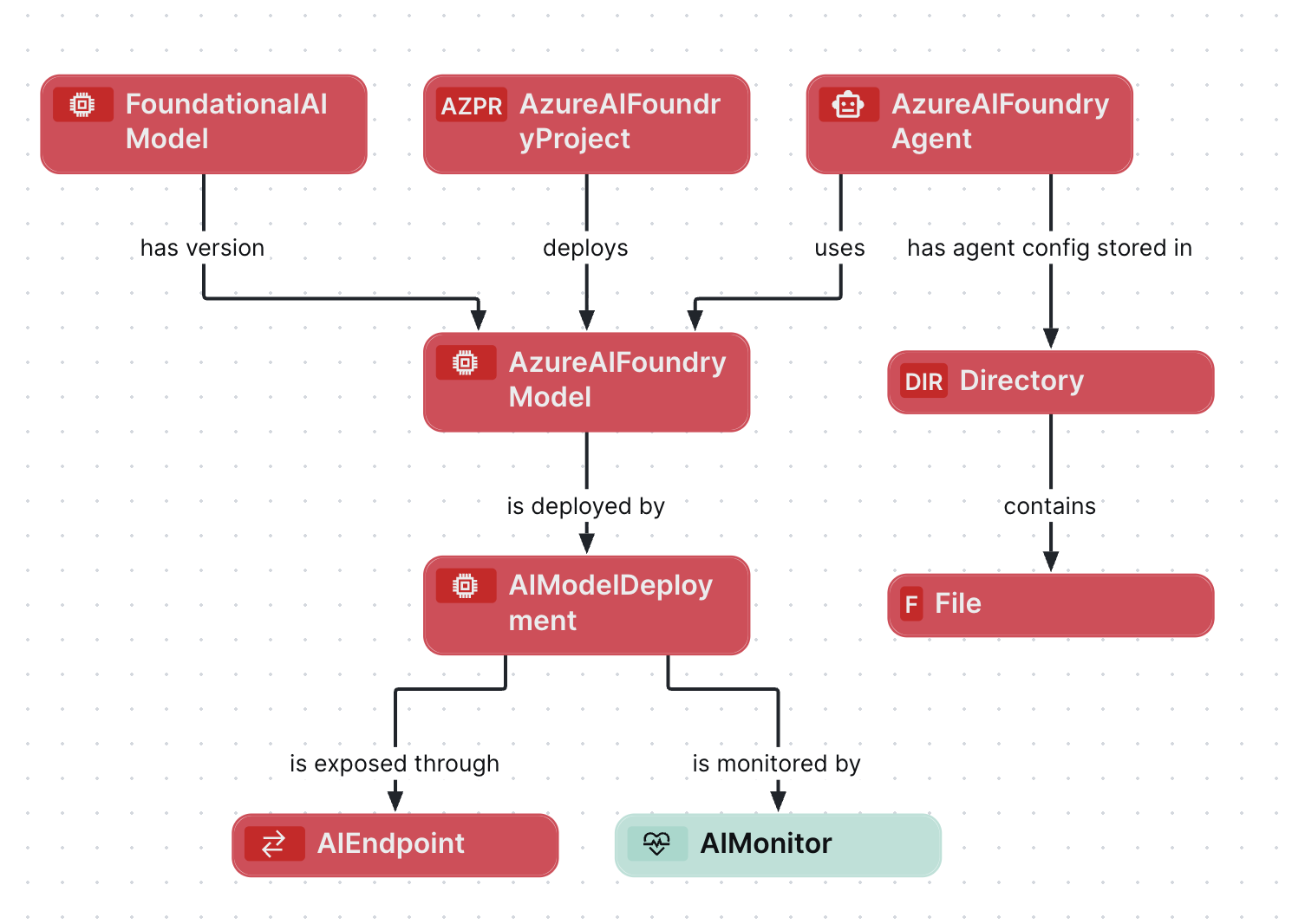

Diagram view
For information on the data that is integrated from Azure AI Foundry, go to Integrated Azure AI Foundry data.
To create this diagram view:
- Open the asset page.
- Click the
Diagram tab.
The diagram is shown in the default diagram view. - Click
to add a new view. - Select the Text option below the diagram view name.
The diagram view text editor is shown. - Copy the code from the Show JSON code section below and paste it in the diagram view text editor.
- Click Save.
- Edit the name and description of the diagram view as needed.
Show JSON code
Copy
{
"nodes": [
{
"id": "FoundationalAIModel",
"type": {
"id": "00000000-0000-0000-0000-000000031422"
}
},
{
"id": "AzureAIFoundryModel",
"type": {
"id": "00000000-0000-0000-0000-000000031411"
}
},
{
"id": "AIModelDeployment",
"type": {
"id": "00000000-0000-0000-0000-000000031500"
}
},
{
"id": "AIEndpoint",
"type": {
"id": "00000000-0000-0000-0000-000000031501"
}
},
{
"id": "AIMonitor",
"type": {
"id": "00000000-0000-0000-0000-000000031502"
}
},
{
"id": "AzureAIFoundryProject",
"type": {
"id": "00000000-0000-0000-0000-000000031421"
}
},
{
"id": "AzureAIFoundryAgent",
"type": {
"id": "00000000-0000-0000-0000-000000031451"
}
},
{
"id": "AIAgentVersion",
"type": {
"id": "00000000-0000-0000-0000-000000031452"
}
},
{
"id": "AIAgentTool",
"type": {
"id": "00000000-0000-0000-0000-000000031453"
}
},
{
"id": "Vendor",
"type": {
"id": "00000000-0000-0000-0000-000000031403"
}
},
{
"id": "FileContainer",
"type": {
"id": "00000000-0000-0000-0001-002900000002"
}
},
{
"id": "File",
"type": {
"id": "00000000-0000-0000-0000-000000031304"
}
}
],
"edges": [
{
"from": "FoundationalAIModel",
"to": "AzureAIFoundryModel",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077000"
},
"roleDirection": true
},
{
"from": "FoundationalAIModel",
"to": "Vendor",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077005"
},
"roleDirection": true
},
{
"from": "AzureAIFoundryModel",
"to": "AIModelDeployment",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077001"
},
"roleDirection": true
},
{
"from": "AzureAIFoundryModel",
"to": "Vendor",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007105"
},
"roleDirection": true
},
{
"from": "AIModelDeployment",
"to": "AIEndpoint",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077006"
},
"roleDirection": true
},
{
"from": "AIModelDeployment",
"to": "AIMonitor",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077007"
},
"roleDirection": true
},
{
"from": "AzureAIFoundryProject",
"to": "AzureAIFoundryModel",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007111"
},
"roleDirection": true
},
{
"from": "AzureAIFoundryAgent",
"to": "AzureAIFoundryModel",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007108"
},
"roleDirection": true
},
{
"from": "AzureAIFoundryAgent",
"to": "AIAgentVersion",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007206"
},
"roleDirection": true
},
{
"from": "AIAgentVersion",
"to": "AIAgentTool",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007207"
},
"roleDirection": true
},
{
"from": "AzureAIFoundryAgent",
"to": "FileContainer",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007115"
},
"roleDirection": true
},
{
"from": "FileContainer",
"to": "File",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007060"
},
"roleDirection": true
}
],
"showOverview": false,
"enableFilters": true,
"showLabels": true,
"showFields": true,
"showLegend": true,
"showPreview": true,
"visitStrategy": "completeGraph",
"layout": "HierarchyTopBottom",
"maxNodeLabelLength": 50,
"maxEdgeLabelLength": 30,
"layoutOptions": {
"compactGroups": false,
"componentArrangementPolicy": "topmost",
"edgeBends": true,
"edgeBundling": true,
"edgeToEdgeDistance": 5,
"minimumLayerDistance": "auto",
"nodeToEdgeDistance": 5,
"orthogonalRouting": true,
"preciseNodeHeightCalculation": true,
"recursiveGroupLayering": true,
"separateLayers": true,
"webWorkers": true,
"nodePlacer": {
"barycenterMode": true,
"breakLongSegments": true,
"groupCompactionStrategy": "none",
"nodeCompaction": false,
"straightenEdges": true
}
}
}For information on the data that is integrated from Microsoft Copilot Studio, go to Integrated Azure AI Foundry data.
To create this diagram view:
- Open the asset page.
- Click the
Diagram tab.
The diagram is shown in the default diagram view. - Click to add a new view.
- Select the Text option below the diagram view name.
The diagram view text editor is shown. - Copy the code from the Show JSON code section below and paste it in the diagram view text editor.
- Click Save.
- Edit the name and description of the diagram view as needed.
Show JSON code
Copy
{
"nodes": [
{
"id": "System",
"type": {
"id": "00000000-0000-0000-0000-000000031302"
}
},
{
"id": "AIAgent",
"type": {
"id": "00000000-0000-0000-0000-000000031450"
}
},
{
"id": "AIAgentVersion",
"type": {
"id": "00000000-0000-0000-0000-000000031452"
}
},
{
"id": "AIAgentTool",
"type": {
"id": "00000000-0000-0000-0000-000000031453"
}
},
{
"id": "FileContainer",
"type": {
"id": "00000000-0000-0000-0001-002900000002"
}
},
{
"id": "File",
"type": {
"id": "00000000-0000-0000-0000-000000031304"
}
}
],
"edges": [
{
"from": "System",
"to": "AIAgent",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007054"
},
"roleDirection": true
},
{
"from": "AIAgent",
"to": "AIAgentVersion",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007206"
},
"roleDirection": true
},
{
"from": "AIAgentVersion",
"to": "AIAgentTool",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007207"
},
"roleDirection": true
},
{
"from": "AIAgentTool",
"to": "FileContainer",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007211"
},
"roleDirection": true
},
{
"from": "FileContainer",
"to": "File",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000007060"
},
"roleDirection": true
}
],
"showOverview": false,
"enableFilters": true,
"showLabels": true,
"showFields": true,
"showLegend": true,
"showPreview": true,
"visitStrategy": "completeGraph",
"layout": "HierarchyTopBottom",
"maxNodeLabelLength": 50,
"maxEdgeLabelLength": 30,
"layoutOptions": {
"compactGroups": false,
"componentArrangementPolicy": "topmost",
"edgeBends": true,
"edgeBundling": true,
"edgeToEdgeDistance": 5,
"minimumLayerDistance": "auto",
"nodeToEdgeDistance": 5,
"orthogonalRouting": true,
"preciseNodeHeightCalculation": true,
"recursiveGroupLayering": true,
"separateLayers": true,
"webWorkers": true,
"nodePlacer": {
"barycenterMode": true,
"breakLongSegments": true,
"groupCompactionStrategy": "none",
"nodeCompaction": false,
"straightenEdges": true
}
}
}
