Layout types

Important This feature is available only in the latest UI.

An asset type can have any one of the following types of layout:

Dynamic
Out-of-the-box (OOTB)
Published

In this topic

Layout descriptions

The following table describes the layout types.

Layout type	Description	Behavior
Dynamic	No specific page layout is defined for the asset type. The asset type automatically generates a dynamic layout based on the characteristic types in the asset type's assignment. That is, a dynamic layout is one that is created based on the assignment, and it includes all the characteristic types from the assignment. You can, however, remove characteristic types from the layout or change their order.	The dynamic layout is automatically applied to asset pages. When characteristic types are added, removed, or reordered in the assignment, the dynamic layout is automatically updated and applied to asset pages. Note If you edit and publish a dynamic layout, it becomes a published type of layout. Then, the asset type will stop automatically generating the layout. You will need to manually edit and publish the layout each time you add or reorder the characteristic types in the assignment. You can, however, restore the dynamic layout using Restore Default.
OOTB	The asset type has a default, OOTB layout defined by Collibra. List of asset types with an OOTB layout AI Model (in preview) AI Use Case Adaptive Rule Score Column Data Category Data Contract Data Notebook Data Product Data Product Input Port Data Product Output Port Data Quality Job Data Quality Rule Data Set Database Database View Duplicate Score Outlier Score Pattern Score Record Score Schema Schema Score Shape Score Source Score Table	The OOTB layout is automatically applied to asset pages. When characteristic types are added or reordered in the assignment, the OOTB layout needs to be edited and published for it to be applied to asset pages. If you edit and publish an OOTB layout, it becomes a published type of layout. You can, however, restore the OOTB layout using Restore Default. Note If you add a characteristic type to the assignment, the layout isn't automatically updated. You need to manually edit the layout to include the new characteristic type and then publish it. Similarly, if you reorder the characteristic types in the assignment, the layout isn't automatically updated. You need to manually edit the layout to move the new characteristic type to the required position and then publish it. This is because Collibra can't know the required position for the new characteristic type. If, however, you remove a characteristic type from the assignment, the layout is automatically updated and applied to asset pages.
Published	The asset type's layout is published. Note Once a dynamic or OOTB layout is published, it becomes a published layout.	The published layout is applied to asset pages. When characteristic types are added or reordered in the assignment, the published layout needs to be edited and republished for it to be applied to asset pages. Note If you add a characteristic type to the assignment, the layout isn't automatically updated. You need to manually edit the layout to include the new characteristic type and then publish it. Similarly, if you reorder the characteristic types in the assignment, the layout isn't automatically updated. You need to manually edit the layout to move the new characteristic type to the required position and then publish it. This is because Collibra can't know the required position for the new characteristic type. If, however, you remove a characteristic type from the assignment, the layout is automatically updated and applied to asset pages.

Layout type

Description

Behavior

Dynamic

No specific page layout is defined for the asset type. The asset type automatically generates a dynamic layout based on the characteristic types in the asset type's assignment.

That is, a dynamic layout is one that is created based on the assignment, and it includes all the characteristic types from the assignment. You can, however, remove characteristic types from the layout or change their order.

The dynamic layout is automatically applied to asset pages.

When characteristic types are added, removed, or reordered in the assignment, the dynamic layout is automatically updated and applied to asset pages.

Note If you edit and publish a dynamic layout, it becomes a published type of layout. Then, the asset type will stop automatically generating the layout. You will need to manually edit and publish the layout each time you add or reorder the characteristic types in the assignment. You can, however, restore the dynamic layout using Restore Default.

OOTB

The asset type has a default, OOTB layout defined by Collibra.

The OOTB layout is automatically applied to asset pages.

When characteristic types are added or reordered in the assignment, the OOTB layout needs to be edited and published for it to be applied to asset pages.

If you edit and publish an OOTB layout, it becomes a published type of layout. You can, however, restore the OOTB layout using Restore Default.

Note

If you add a characteristic type to the assignment, the layout isn't automatically updated. You need to manually edit the layout to include the new characteristic type and then publish it.
Similarly, if you reorder the characteristic types in the assignment, the layout isn't automatically updated. You need to manually edit the layout to move the new characteristic type to the required position and then publish it. This is because Collibra can't know the required position for the new characteristic type.
If, however, you remove a characteristic type from the assignment, the layout is automatically updated and applied to asset pages.

Published

The asset type's layout is published.

Note Once a dynamic or OOTB layout is published, it becomes a published layout.

The published layout is applied to asset pages.

When characteristic types are added or reordered in the assignment, the published layout needs to be edited and republished for it to be applied to asset pages.

Note

If you add a characteristic type to the assignment, the layout isn't automatically updated. You need to manually edit the layout to include the new characteristic type and then publish it.
Similarly, if you reorder the characteristic types in the assignment, the layout isn't automatically updated. You need to manually edit the layout to move the new characteristic type to the required position and then publish it. This is because Collibra can't know the required position for the new characteristic type.
If, however, you remove a characteristic type from the assignment, the layout is automatically updated and applied to asset pages.

How to identify the layout type?

The following message appears on the Edit Asset Type Layout page depending on the layout type:

Dynamic layout: Not edited or published by anyone.
OOTB layout: Not edited or published by anyone.
Published layout: Last published...
Draft layout: Draft saved less than...

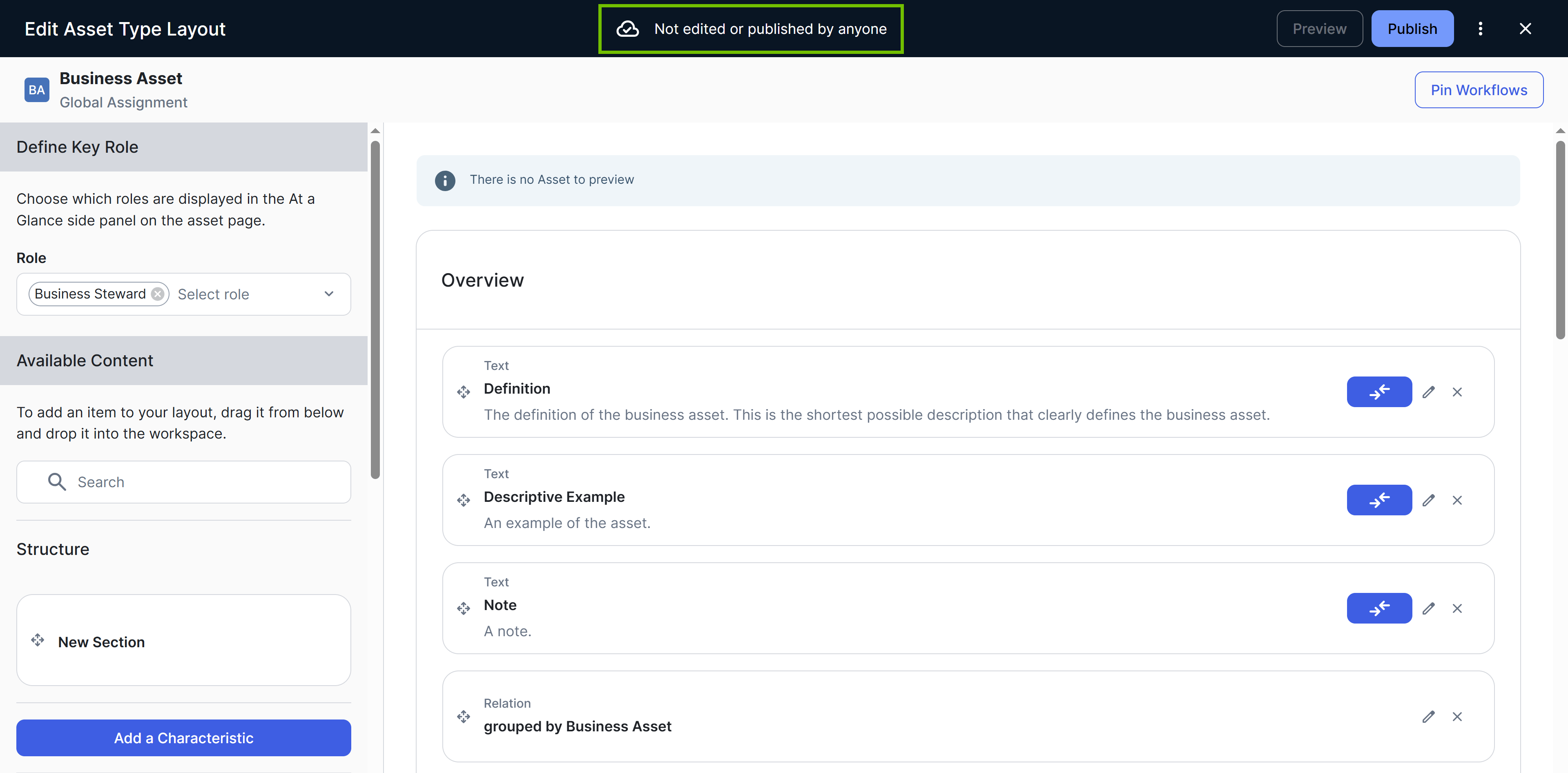

Image of the Edit Asset Type Layout page showing the message

To differentiate between a dynamic layout and an OOTB layout, note the following:

Dynamic layout: All characteristic types are already included in the layout. There are no sections or characteristic types available in the left pane to add to the layout.
OOTB layout: Sections are typically included in the layout, each with a name and grouped characteristic types. You may find some characteristics types in the left pane to add to the layout.
