Tableau general troubleshooting

You get connectivity issues with a 401001 error code.

Unfortunately, 401001 is a very general error code, returned by a Tableau API, that can refer to many issues, including but not limited to the following:

The lineage harvester configuration file was configured with the wrong password or Tableau site ID.
SSO authentication was used, which is not supported.

Ensure that the user/token that you intend to use to ingest Tableau assets can authenticate to your Tableau APIs via the command line, from the server on which you intend to install and run the lineage harvester.

You can test your ability to authenticate by making the signin API call, using a cURL command.

You can also try checking the login request that the lineage harvester is sending to the Tableau server.

For complete information and guidance on how to test your ability to connect to the Tableau server and authenticate, see Test connectivity with the Tableau server.

The authentication token is automatically refreshed in the case of an HTTP 401 Unauthorized error. If the token is refreshed, the log file includes the following line: Refreshing token.

If a refreshed token doesn't resolve the issue, the problem could be that there are too many concurrent HTTP calls, using the same token. Try using the optional concurrencyLevel property in your lineage harvester configuration file, to indicate that you want HTTP requests to be run in a synchronous manner, instead of in parallel.

The lineage harvester does not connect to hosts using a proxy server.

Technical lineage does not support proxy server authentication, but you can connect to a proxy server. For complete details, including the necessary commands, see Connecting to a proxy server.

You get a TCP timeout error.

To avoid TCP timeout errors, try configuring the Linux TCP keepalive setting:

Edit your /etc/sysctl.conf file:
# vi /etc/sysctl.conf
Add the following settings:
net.ipv4.tcp_keepalive_time = 60
net.ipv4.tcp_keepalive_intvl = 10
net.ipv4.tcp_keepalive_probes = 6
To load the settings, run the following command:
# sysctl -p

The designation "UNDEFINED" is shown in the technical lineage.

If you are using a Tableau <source ID> configuration file, ensure that you have specified a value for the relevant collibraSystemName property.

You get the following error message or a similar certificate error:

Source '<data source name> failed with exception: javax.net.ssl.SSLHandshakeException: General SSLEngine problem

This message appears when the proxy server sends an unexpected certificate to the lineage harvester or when the default Java TrustStore is empty or outdated.

First update Java and rerun the lineage harvester to see if that resolves the issue. If the same error message is shown, try the following:

On Windows

Note

In the following example commands, we refer to the techlin-gcp-us instance. You should refer to the correct Collibra Data Lineage service instance in the geographic location of your Collibra Data Intelligence Cloud environment.
Tableau is used as an example in the following steps. You can replace tableau in the example commands with your data source.

Run the following command to extract the certificate from the Tableau server:
keytool -printcert -rfc -sslserver techlin-gcp-us.collibra.com:443 > tableau-cert.crt
Tip Replace the URL techlin-gcp-us.collibra.com with the URL for your Tableau server, which you specify in the lineage harvester configuration file. This will create a file named tableau-cert.crt in the folder where you run this command.
Run the following command to find the location of your JAVA_HOME:
echo %JAVA_HOME%
The location path will be something like the following: C:\Program Files\Java\jdk-17.0.2
Use the location path of your JAVA_HOME in the following command, to import the tableau-cert.crt file into the cacerts file found above.
keytool -importcert -file tableau-cert.crt -alias "TableauProdServerCert" -keystore "C:\Program Files\Java\jdk-17.0.2\cacerts"
Note You can specify a different alias, if you want.
Run the following command:
keytool -list -keystore "C:\Program Files\Java\jdk-17.0.2\lib\security\cacerts" | findstr "Tableau"
Enter the keystore password.
Tip The password is typically changeit.
A list of all certificates that match the Tableau string in the "C:\Program Files\Java\jdk-17.0.2\cacerts" file is shown.
Tip In the list of certificates, look for the one that you imported in step 3. If it's listed, it means the "C:\Program Files\Java\jdk-17.0.2\cacerts" file has the certificate needed to validate the Tableau server.
Run the following command to have the lineage harvester use the cacerts file that you just updated.
set JAVA_OPTS=-Djavax.net.ssl.trustStore="C:\Program Files\Java\jdk-17.0.2\lib\security\cacerts" -Djavax.net.ssl.trustStorePassword="changeit"
Run the following command to test the synchronization:
./lineage-harvester.bat full-sync -s tableau

On Linux

Note

In the following example commands, we refer to the techlin-gcp-us instance. You should refer to the correct Collibra Data Lineage service instance in the geographic location of your Collibra Data Intelligence Cloud environment.
If you want to add an existing certificate to the Java TrustStore, instead of creating a new Keystore, replace "<your keystore name>" in steps 2 and 3, with the path to the cacerts file in your Java installation, for example %JAVA_HOME%\jre\lib\cacerts.

Use the following command to get a certificate from the corresponding techlin-gcp-us.com site, which is part of the CollibraData Lineage infrastructure:
openssl x509 -in <(openssl s_client -connect techlin-gcp-us.collibra.com:443 -prexit 2>/dev/null) -out techlin-gcp-us.crt
Tip If you already have a correctly formatted certificate on the server, you can skip this step.
Add the certificate to the Java TrustStore:
keytool -importcert -file techlin-gcp-us.crt -alias techlin-gcp-us -keystore <your keystore name> -storepass changeit
Run the lineage harvester and use the new TrustStore using the following parameter:
-Djavax.net.ssl.trustStore=<your keystore name>
Example To synchronize your data sources again, run the following command:
```
./bin/lineage-harvester full-sync -Djavax.net.ssl.trustStore=mykeystore
```

You get an external system ID mapping error.

The error message looks similar to the following:

PROCESSING ERROR: "syncer.domain.DgcSyncError: java.lang.Exception: Unexpected DGC job status: ERROR
Error message: {
"type" : "MESSAGE",
"message" : "A mapping for the external system id 'd0f3a21a2324fa117112409bdea6ade7' and resource '59cf9293-fca1-4f78-99ab-31c150a23626' already exists."
}
Caused by: java.lang.Exception: Unexpected DGC job status: ERROR
Error message: {
"type" : "MESSAGE",
"message" : "A mapping for the external system id 'd0f3a21a2324fa117112409bdea6ade7' and resource '59cf9293-fca1-4f78-99ab-31c150a23626' already exists."
}"

Please create a support ticket and provide your answers to the following two questions.

Note Refer to the example error message above and replace the IDs of the external system and the mapped resource with those in the error message you received.

What is the asset type of the mapped asset? In this example, the asset with ID 59cf9293-fca1-4f78-99ab-31c150a23626?
Tip To view the asset type, go to the following URL: <your-collibra-platform-url>/asset/59cf9293-fca1-4f78-99ab-31c150a23626
What is the mapping definition?
Tip To view the mapping definition, go to the following URL: <your-collibra-platform-url>/rest/2.0/mappings/externalSystem/d0f3a21a2324fa117112409bdea6ade7/mappedResource/59cf9293-fca1-4f78-99ab-31c150a23626

If you are using Collibra Data Intelligence Cloud 2021.11 or older, you have to add all Tableau attributes in the operating model to a scope and create a scoped assignment before you ingest Tableau via the lineage harvester.

Show me how to add attributes to a scope and create a scoped assignment

Prerequisites

You are using Collibra 2021.11 or older.
You have a global role that has the System administration global permission.

Steps

On the main menu, click , and then click Settings.
The Collibra settings page opens.
In the tab pane, click Scopes.
Above the table, to the right, click Add.
The Create Scope dialog box appears.
Enter the required information.
Field Description
Name The name of the scope.
Description The description of the scope, for example to add extra details.
Click Save.
Open a Tableau asset type:
1. On the main menu, click , and then click Settings.
  The Collibra settings page opens.
2. In the tab pane, click Asset Types.
  The asset type table appears.
3. In the overview of asset types, click an asset type.
The Asset type editor opens.
Important You need to do this for each of the following asset types:
- Tableau Project
- Tableau Site
- Tableau Workbook
- Tableau Data Attribute
- Tableau Server
There are other Tableau asset types, but they do not require the scoped assignment.
In the tab pane, click Add assignment.
The Select scope for this assignment dialog box appears.
Select the custom scope that you have created for Tableau assets.
Note You can only add one scope at a time.
Click Add assignment.
The settings of the global assignment are copied into the selected scope.

Warning After you've created the scoped assignment, do not change the assignment itself. The sole purpose of the scoped assignment is to ingest read-only attributes for which you normally need a system user.

Note If you ingest Tableau metadata in a Collibra version 2021.09 or older, you must also manually create two new relation types and add them to the Tableau <source ID> configuration file.

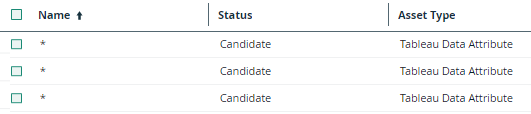

In Collibra, the name of a Tableau Data Attribute name is an asterisk (*).

If you ingest a Tableau dataset that doesn't have any attributes, asterisks (*) are shown as the Tableau Data Attribute asset names in Collibra.

You get the following error message:

Can’t show all data because the timeout limit PT1M has been exceeded. Use pagination, additional filtering, or both in the query, and try again.

To resolve this error, try lowering the relevant paging option value (or values) for the failing query. Consider the following failure summary:

harvester.AbstractHarvester - Failure summary:
	Source ‘tabemeat’ failed with exception: harvester.error.TableauHarvesterError: Failed to process Tableau source: Failed to execute metadata query. Errors: [{“message”:“Can’t show all data because the timeout limit PT1M has been exceeded. Use pagination, additional filtering, or both in the query, and try again.“}].
	Query: query worksheets($cursor: String, $pageSize: Int, $nestedPageSize: Int) {
		sheetsConnection(first: $pageSize, after: $cursor) {
			nodes {
			id
			name
			luid
			....

In this example, the query name is worksheets:

Query: query worksheets($cursor: String, $pageSize: Int, $nestedPageSize: Int)

Try lowering one or both of the paging option values for worksheets:

worksheetsPageSize (default value is 100)
worksheetsFieldsPageSize (default value is 100)

Show me all of the paging options and default values for each query name

Query name	Paging options (default value)
dashboards	dashboardsPageSize (100)
databases	databasesPageSize (100)
datasourceFields	datasourceFieldsPageSize (100) Plus the following limits: columnsLimit (20) fieldsLimit (20)
datasources	datasourcesPageSize (50) datasourcesFieldsPageSize (50) Plus the following limits: columnsLimit (20) fieldsLimit (20)
tableColumns	tableColumnsPageSize (1000)
tables	tablesPageSize (100) tablesColumnsPageSize (100)
worksheetFields	worksheetFieldsPageSize (1000)
worksheets	worksheetsPageSize (100) worksheetsFieldsPageSize (100)
