Supported Power Query M functions

Power Query M functions are the building blocks of the Power Query M formula language. They are mapping values that take a set of input values (arguments) and produce a single output value. Every transformation step you perform in the Power Query editor (like "Remove Columns" or "Filter Rows") is actually a function call happening behind the scenes in the M script.

Collibra Data Lineage uses Power Query M functions to interpret complex transformations within Power BI. This analysis allows BI Admins to view column-level lineage and automated stitching for report assets.

Not all functions have an impact on the technical lineage, so even though an error is raised for any unsupported functions, it might not mean that your lineage is incomplete. We are working to support the most common Power Query functions. If you have a Power Query function that is not yet supported and it’s very important to you, please create an Ideation ticket.

Collibra Data Lineage performs lexical and syntax analysis of M. It currently support the following functions.

For complete information on these functions, see the Microsoft documentation on accessing data functions.

Backend-accessing data functions that impact the lineage diagram

• AmazonRedshift.Database
• AnalysisServices.Database

  Note 

  • This function is fully supported if no MDX queries are used.
  • If MDX queries are used and they resemble SQL, they are parsed by the SQL parser.
  • We don't currently support this function if used with MDX queries that resemble DAX, as the Collibra Data Lineage service instances can't parse such queries.
• AnalysisServices.Databases
• Csv.Document
• Databricks.Contents
• Databricks.Catalogs
• Excel.Workbook
• File.Contents
• GoogleBigQuery.Database
• Odbc.DataSource
• Odbc.Query
• Oracle.Database
• PostgreSQL.Database
• SapBusinessWarehouse.cubes

  Note Lineage can't be generated if you use the Table.SelectRows function in conjunction with the SapBusinessWarehouse.cubes function, because the Table.SelectRows function requires a table parameter, not a source parameter.
• SapHana.Database
• Snowflake.Database
• Sql.Database
• Sql.Databases
• Sybase.Database
• Teradata.Database
• Web.Contents

Transformations that impact the lineage diagram

• Cube.AddAndExpandDimensionColumn
• Cube.Transform
• List.Zip
• PowerBI.Dataflows

  Note We only support dataflows without parameters that contain the following information:

  • workspace ID
  • dataflow ID
  • entity (Power BI Table) ID
• PowerPlatform.Dataflows

  Note We only support dataflows without parameters that contain the following information:

  • workspace ID
  • dataflow ID
  • entity (Power BI Table) ID
• Replacer.ReplaceText
• Replacer.ReplaceValue
• Table.AddColumn
• Table.AddIndexColumn
• Table.Combine

  Additional information

  If Collibra Data Lineage can’t determine the column names in a source file or database, but the Power BI column names are known and there is only one source file or database, then corresponding database and file columns are created and technical lineage is preserved. However, if column names can’t be determined and there are multiple source files or databases, as is the case when the Table.Combine function is used, then it’s not possible to know which source column corresponds to the Power BI column. This results in an error and the technical lineage is broken.

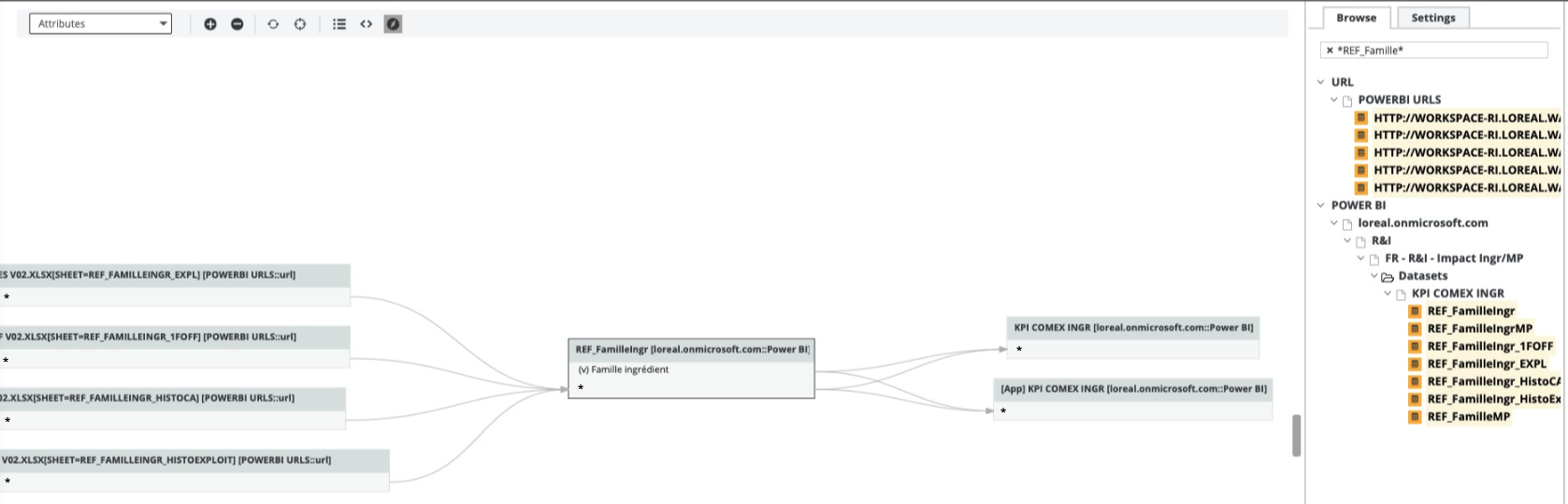

  To resolve this issue, a dummy column with the value “*” is created in the source table and the Power BI table:

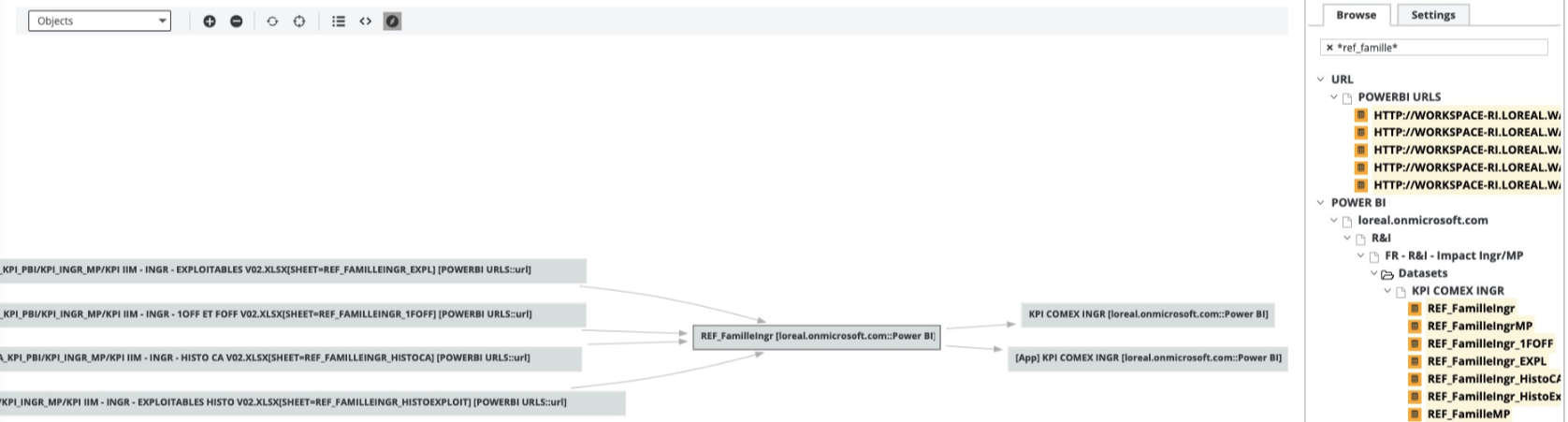

  This preserves the technical lineage at the table level:


• Table.CombineColumns
• Table.DuplicateColumn
• Table.ExpandTableColumn
• Table.FromList
• Table.FromRecords
• Table.FromRows
• Table.Group
• Table.NestedJoin
• Table.PromoteHeaders
• Table.RemoveColumns
• Table.RenameColumns
• Table.ReorderColumns
• Table.ReplaceValue
• Table.SelectColumns
• Table.SplitColumn
• Table.Unpivot
• Table.UnpivotOtherColumns
• Table.TransformColumnNames

  Note 

  • Only the following parameters are supported: Text.Upper, Text.Lower, and Text.Proper.
  • If columns in Power BI are renamed before they are transformed via this function (Text.Upper, Text.Lower or Text.Proper), the original column names are now shown in the database node in the technical lineage

  .
• Value.NativeQuery

  Note Query parameters are supported. Core parameters are not supported.
• Text.Trim
• Text.TrimEnd
• Text.TrimStart

Transformations that don't impact the lineage diagram

• Table.AddKey
• Table.AlternateRows
• Table.Buffer
• Table.Distinct
• Table.ExpandListColumn
• Table.FillDown
• Table.FillUp
• Table.FindText
• Table.FirstN
• Table.InsertRows
• Table.IsEmpty
• Table.LastN
• Table.MaxN
• Table.MinN
• Table.Range
• Table.RemoveFirstN
• Table.RemoveLastN
• Table.RemoveMatchingRows
• Table.RemoveRows
• Table.RemoveRowsWithErrors
• Table.Repeat
• Table.ReplaceErrorValues
• Table.ReplaceKeys
• Table.ReplaceMatchingRows
• Table.ReplaceRows
• Table.ReverseRows
• Table.SelectRows
• Table.SelectRowsWithErrors
• Table.Skip
• Table.Sort
• Table.TransformColumns
• TableTransformColumnTypes
• Table.First
• Table.Last
• Table.Max
• Table.Min
• Table.SingleRow
• Text.From

Unsupported transformations

• DB2.Database
• Folder.Files
• Parquet.Document
• PowerBIRESTAPI.Navigation
• SharePoint.Contents
• SharePoint.Files
• SharePoint.Tables
• Table.ExpandRecordColumn
• Table.FromRecords
• Table.Group
• Table.ToColumns
