Example | Implementing technical lineage for Databricks Unity Catalog via Edge

This use case uses Global Logistics as an example business scenario to demonstrate the value of technical lineage for Databricks Unity Catalog.

As the Global Logistics footprint expands, analysts and data engineers must be able to understand and trust the data published in Databricks Unity Catalog. Inventory, shipment, and fulfillment data is transformed across multiple pipelines, making it difficult to assess downstream impact when changes occur or to quickly identify the source of data issues.

Technical lineage provides end-to-end visibility into how logistics data flows from upstream sources to curated, business-ready “Gold-tier” datasets. This enables teams to perform impact analysis, accelerate root-cause diagnosis, and provide compliance teams with a traceable view of critical logistics assets.

Scenario

This use case assumes that the Databricks Unity Catalog Integration is already complete and your physical assets are visible in the Data Catalog.

Your goal is to generate technical lineage that stitches to these existing assets. To maintain a high security posture, you will configure the Edge site to connect to the Collibra Data Lineage service via OAuth. Additionally, rather than granting Collibra direct access to the system.query.history tables, you will point Collibra Data Lineage to a dedicated custom catalog in Databricks where lineage-related views have been curated for governance.

Collibra Data Lineage currently extracts logic for Databases, Schemas, Tables, Columns, Volumes (in preview), and Notebooks (in preview). It does not ingest other assets such as Workflows or Job Clusters at this time.

In this guide, you will do the following:

1. Review and confirm that your environment meets the minimum requirements for Collibra Data Lineage.
2. Enable technical lineage via Edge in Collibra settings.
3. Obtain a client ID and client secret by registering a "Technical Lineage" application in Collibra Settings.
4. Use the OAuth credentials to create a Technical Lineage Admin Connection on your Edge site.
5. Link the existing Databricks Connection from your initial metadata integration to provide access to the Unity Catalog environment.
6. Add the technical lineage for Databricks Unity Catalog capability to your connection.
7. Synchronize the capability to generate technical lineage for your Gold-tier inventory data, automatically stitching it to your existing Catalog assets.

Prerequisites

On your local server

• You can confirm, or know who to reach out to in your organization that can confirm, that your server meets all system requirements outlined in this use case guide.
• You installed an Edge site.

Network

• Confirm that outbound traffic is allowed over HTTPS (Port 443).
• Use DNS names for all firewall rules. If static IPs are required, use a command-line utility such as nslookup to resolve current mappings, as IPs are dynamic.
• Allow outbound traffic to the techlin-us-east-1.collibra.com Collibra Data Lineage service instance.

Within Collibra

• You created an Edge site.
• You have integrated Databricks Unity Catalog.
• To connect to the Collibra Data Lineage service instance via OAuth authentication:

  • You have a global role with the Product Rights > System administration global permission.
  • You have a global role that has the Manage Edge sites global permission.
  • You have a global role that has the Manage connections and capabilities global permission.
• To add the technical lineage for Databricks Unity Catalog capability:
  • A connection to Databricks exists in your Edge site.
  • You have a global role that has the Manage connections and capabilities global permission, for example, Edge integration engineer, and the and View Edge connections and capabilities global permission.

Within Databricks

• The CAN ATTACH TO and CAN RESTART permissions for your compute resource.
  You can create a dedicated compute resource for generating technical lineage, or use an existing compute resource with Unity Catalog support. For details, go to Compute permissions in Databricks documentation.
  To prevent clusters from running for the entire synchronization duration, you can also configure the Terminate after ... minutes of inactivity setting in Databricks. The setting ensures that clusters automatically stop after a period of inactivity. For more information, go to the Databricks documentation.

• To maintain a high security posture, create a dedicated custom catalog in Databricks for governance purposes for example, collibra_lineage_metadata. This ensures the Collibra service principal only interacts with the metadata required for lineage.


  Create a custom catalog with proper permissions

  1. Create a catalog and grant the following privileges: BROWSE, EXECUTE, READ VOLUME, SELECT, USE CATALOG, and USE SCHEMA.
     Show an example

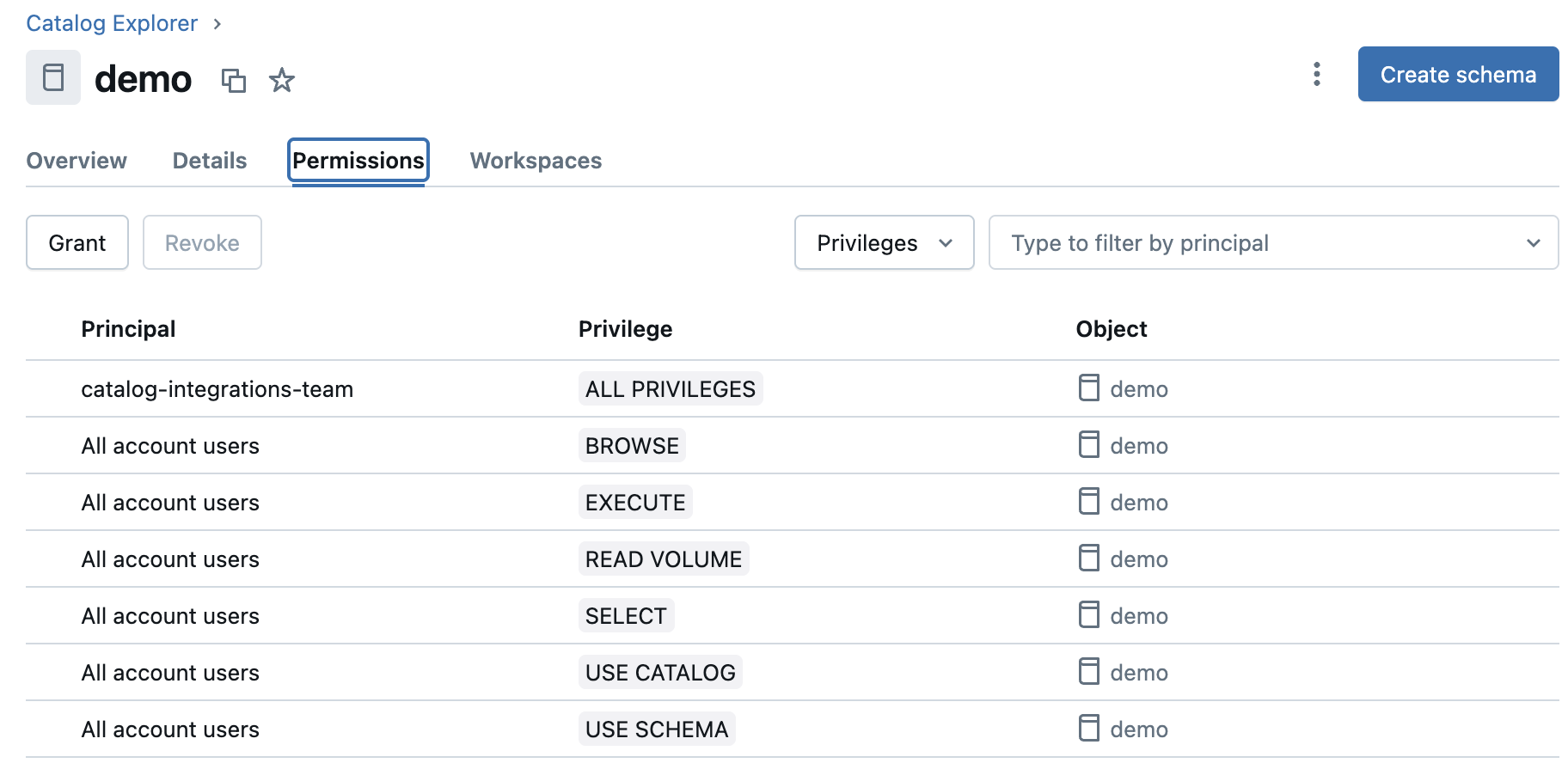

     This example shows a custom catalog named demo with its associated privileges.

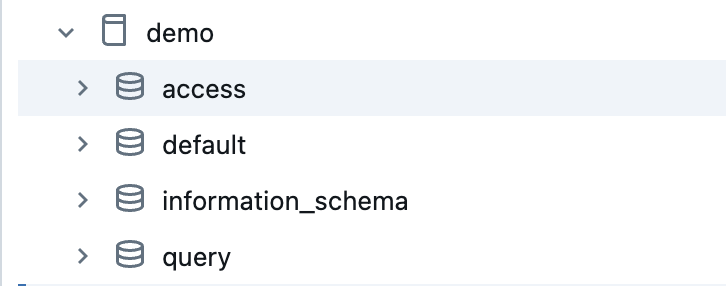

  2. Create two schemas in the catalog: access and query.
     Show an example


  3. Grant the following privileges on the access and query schemas: EXECUTE, READ VOLUME, SELECT, and USE SCHEMA.
     Some privileges might be inherited from the catalog privileges granted in step 1.
     Show examples

     This example shows the privileges for the access schema.

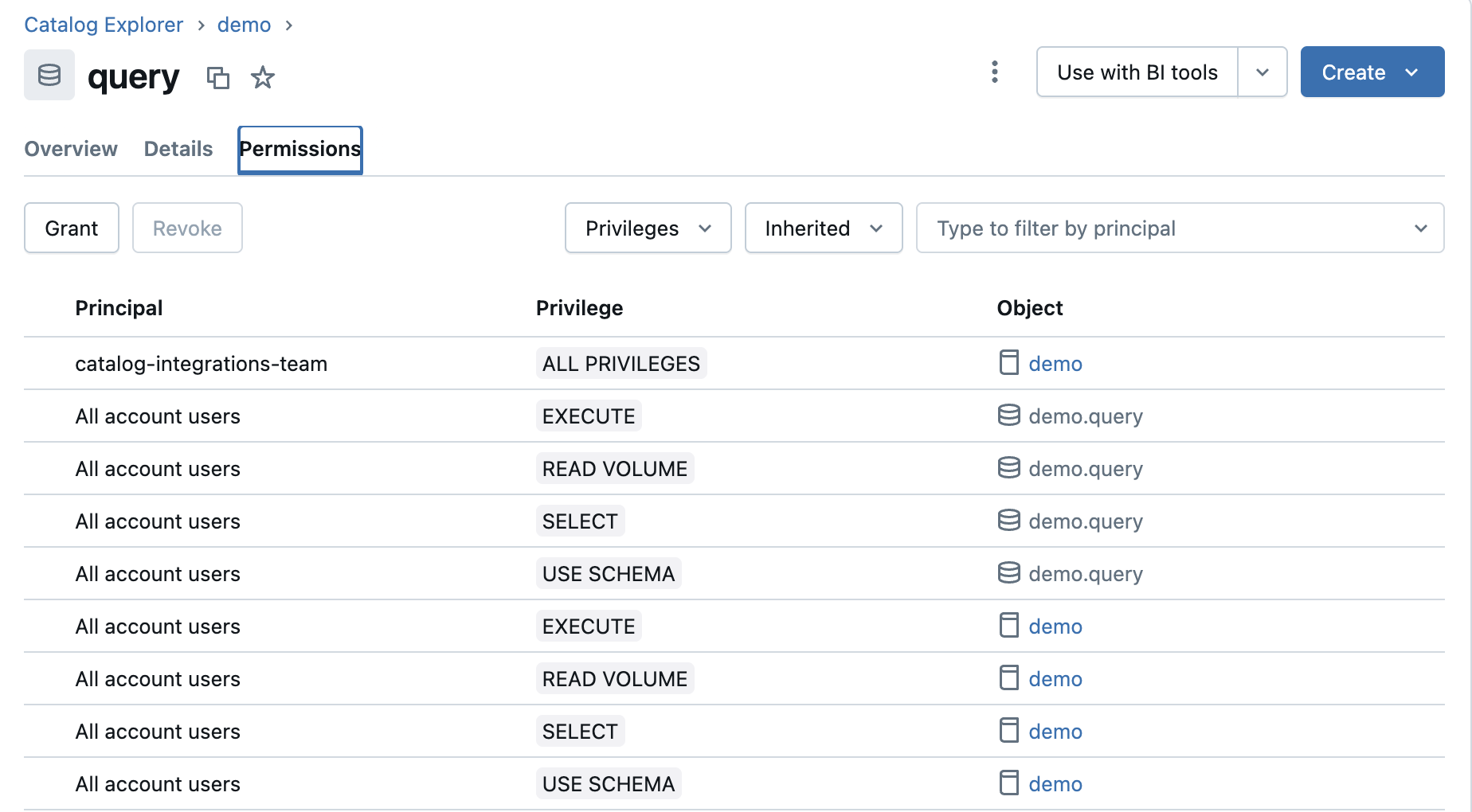

     This example shows the privileges for the query schema.


  4. In the access schema in the demo catalog, create the following views:
     • A column_lineage view based on the system.access.column_lineage table.
     • A table_lineage view based on the system.access.table_lineage table.
     Show an example

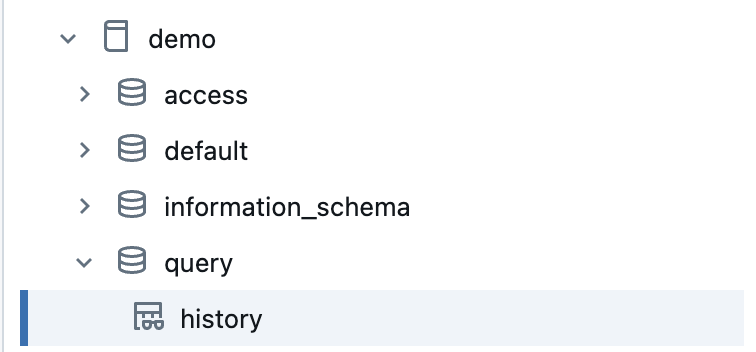

  5. In the query schema in the demo catalog, create a history view based on the system.query.history table.
     Show an example

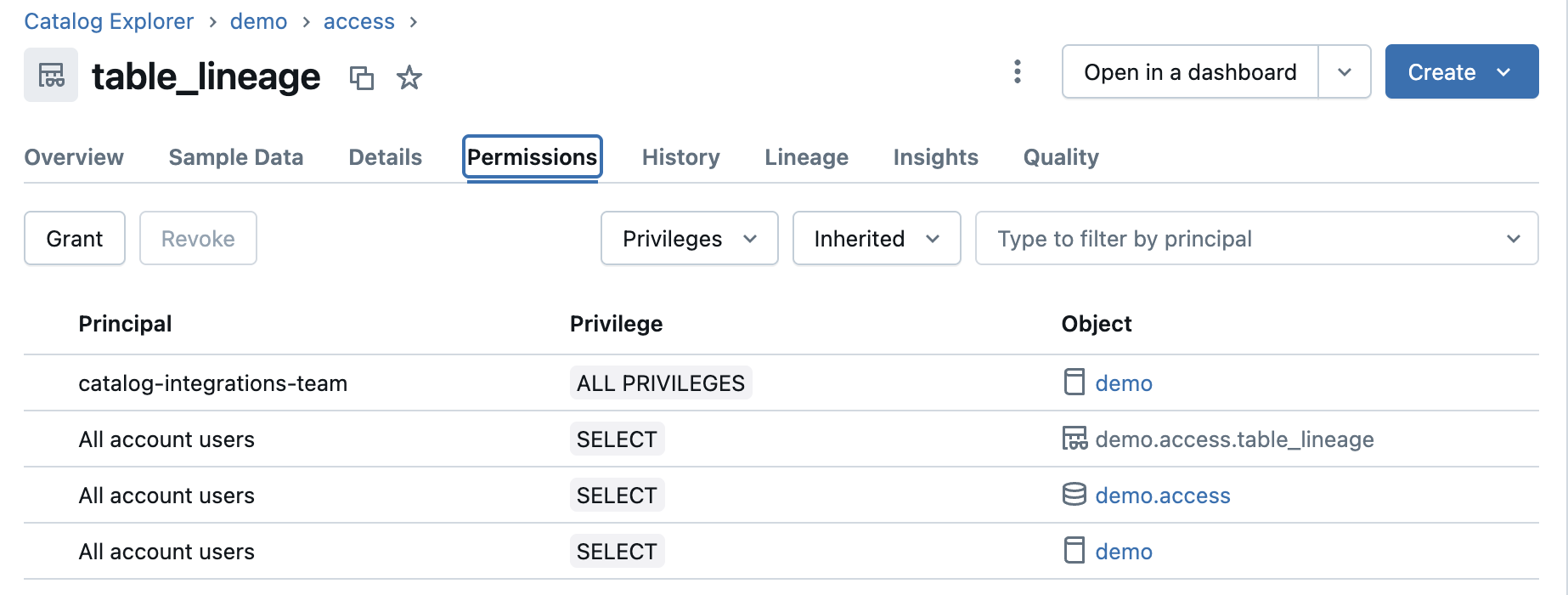

  6. Grant the SELECT privilege on the following views created in steps 4 and 5: column_lineage, table_lineage, and history.
     Show examples



Enable technical lineage via Edge

This step activates Collibra Data Lineage on your Edge site and prepares it for stitching.

1. Open the Services Configuration tab:
   1. On the main toolbar, click → Settings.
      The Settings page opens.
   2. Click Services Configuration.
   3. Click Edit configuration.
2. In the Lineage on Edge section, enter the following information:
   • DGC user name: Leave blank.
   • DGC user password: Leave blank.
   • Collibra system name: True. (This ensures lineage attaches to the specific System Asset name rather than just the database name).
3. Click Add.

Obtain OAuth Credentials

By registering a Platform application, Edge can securely connect to the Collibra Data Lineage service to parse collected metadata and generate technical lineage assets.

1. In Collibra Settings, click OAuth Applications.
2. Click Register New Application.

   The Register New Application dialog box appears.
3. Enter the following information:


   1. Application Type: Platform.
   2. Application Type: Logistics_Technical_Lineage_OAuth_Client
   3. Integration Type: Technical Lineage.

4. Click Register and immediately save the Client ID and Client Secret.

   Note This is the only time you are able to see the client secret.

Add a Technical Lineage Admin connection

Add a Technical Lineage Admin connection and use the newly created OAuth tokens to connect to the Collibra Data Lineage service.

1. Open a site.
   1. On the main toolbar, click → Settings.
      The Settings page opens.
   2. In the tab pane, click Edge.
      The Sites tab opens and shows a table with an overview of your sites.
   3. In the table, click the name of the site whose status is Healthy.
      The site page opens.
2. In the Connections section, click Create connection.
3. Select Technical Lineage Admin connection to connect to a Collibra Data Lineage service instance.
   The Create connection page appears.
4. Enter the required information.
   • Name: Technical_Lineage_Admin_Logistics
   • Description: OAuth-based admin connection for publishing technical lineage for the Databricks Logistics environment.
   • Authentication Type: OAuth
   • Client ID: 6b2e9d1a-xxxx-xxxx-xxxx-7c1a8b9e0f34
   • Client Secret: aB1!c2D3_eF4gH5iJ6kL7mN8oP9qR0sT1uV2wX3yZ4...
5. Click Create.
   The connection is added to the Edge site.

Add a technical lineage Databricks capability

1. Open a site.
   1. On the main toolbar, click → Settings.
      The Settings page opens.
   2. In the tab pane, click Edge.
      The Sites tab opens and shows a table with an overview of your sites.
   3. In the table, click the name of the site whose status is Healthy.
      The site page opens.
2. In the Capabilities section, click Add capability.
   The Add capability page appears.
3. Select the Technical Lineage for Databricks Unity Catalog capability template.
4. Enter the required information.

   • Name: Logistics_Inventory_Tech_Lineage
   • Description: Technical lineage for Gold-tier Logistics data, stitching to assets in the Databricks_Logistics_Production system.
   • Databricks Connection: Databricks_Logistics_Production. We use the same connection created for the Databricks Unity Catalog integration.
   • Compute Resource HTTP Path): /sql/1.0/warehouses/a1b2c3d4e5xxxxxx
   • Source ID: Databricks_Logistics_Production
   • TechLin Admin Connection: Technical_Lineage_Admin_Logistics
   • Time Frame: 30
   • Property: Leave blank
   • Processing Level: Sync
   • Active: Checked
   • Save Input Metadata: Unchecked
   • Ingest lineage from external tables:Checked
   • Also ingest lineage from table_lineage: Checked
   • (Deprecated) Filters: Leave blank
   • Logging configuration: Leave blank
   • Memory: Leave blank.
   • JVM arguments: Leave blank.
   • Debug: false
   • Log level: Leave blank.
5. Click Add.
   The capability is added to the Edge site.
   The fields become read-only.

Manually synchronize your technical lineage

Sources

• Integrate Databricks Unity Catalog via Edge on k3s
• Create a technical lineage via Edge

What's next

View the technical lineage graph.
