The SAP AI Core integration of Collibra Platform Self-Hosted uses 1 asset type. The asset type comes out-of -the-box with your software.
Important The functions of the SAP AI Core integration are limited if you do not enable AI governance. When you enable AI Governance, you can add custom attributes or custom relations, for example, AI Model Version, to the SAP AI Model Version asset.
| Asset type | Description |
|---|---|
|
SAP AI Model Version
|
A subtype of AI Model Version that represents AI model versions in SAP AI Core. |

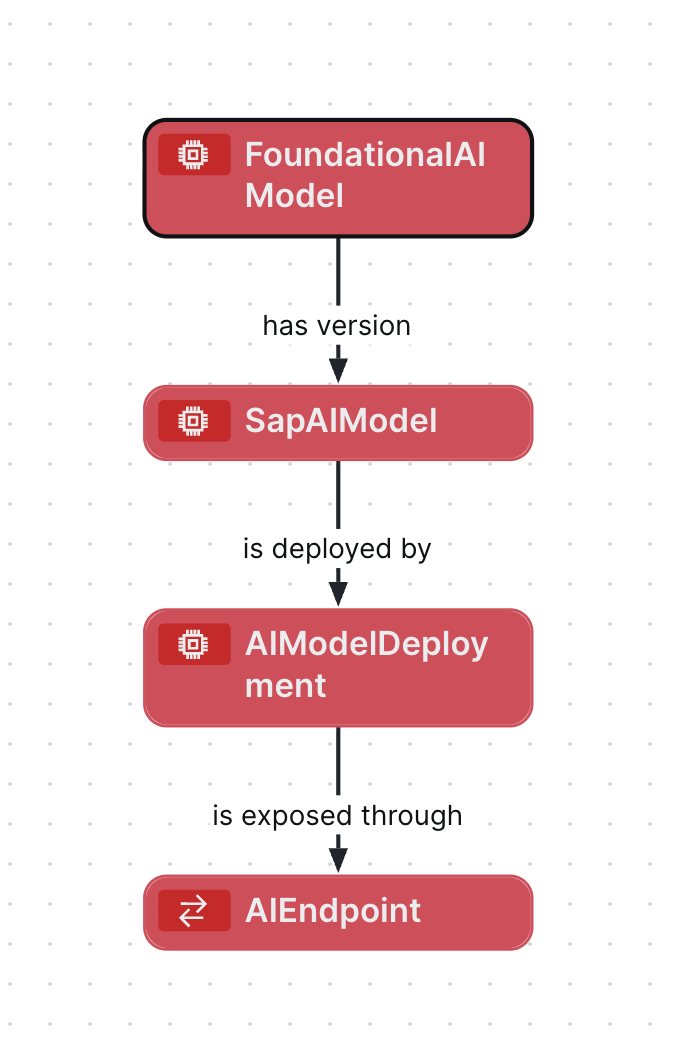

SAP AI Core diagram view
For information on the data that is integrated from SAP AI Core, go to Integrated SAP AI Core data.
Steps
- Open the asset page.
- Click the
Diagram tab.
The diagram is shown in the default diagram view. - Click
to add a new view. - Select the Text option below the diagram view name.
The diagram view text editor is shown. - Copy the code from the Show JSON code section below and paste it in the diagram view text editor.
- Click Save.
- Edit the name and description of the diagram view as needed.
Show JSON code
Copy
{
"nodes": [
{
"id": "FoundationalAIModel",
"type": {
"id": "00000000-0000-0000-0000-000000031422"
}
},
{
"id": "SapAIModel",
"type": {
"id": "00000000-0000-0000-0000-000000031409"
}
},
{
"id": "AIModelDeployment",
"type": {
"id": "00000000-0000-0000-0000-000000031500"
}
},
{
"id": "AIEndpoint",
"type": {
"id": "00000000-0000-0000-0000-000000031501"
}
}
],
"edges": [
{
"from": "FoundationalAIModel",
"to": "SapAIModel",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077000"
},
"roleDirection": true
},
{
"from": "SapAIModel",
"to": "AIModelDeployment",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077001"
},
"roleDirection": true
},
{
"from": "AIModelDeployment",
"to": "AIEndpoint",
"label": "",
"style": "arrow",
"type": {
"id": "00000000-0000-0000-0000-000000077006"
},
"roleDirection": true
}
],
"showOverview": false,
"enableFilters": true,
"showLabels": true,
"showFields": true,
"showLegend": true,
"showPreview": true,
"visitStrategy": "completeGraph",
"layout": "HierarchyTopBottom",
"maxNodeLabelLength": 50,
"maxEdgeLabelLength": 30,
"layoutOptions": {
"compactGroups": false,
"componentArrangementPolicy": "topmost",
"edgeBends": true,
"edgeBundling": true,
"edgeToEdgeDistance": 5,
"minimumLayerDistance": "auto",
"nodeToEdgeDistance": 5,
"orthogonalRouting": true,
"preciseNodeHeightCalculation": true,
"recursiveGroupLayering": true,
"separateLayers": true,
"webWorkers": true,
"nodePlacer": {
"barycenterMode": true,
"breakLongSegments": true,
"groupCompactionStrategy": "none",
"nodeCompaction": false,
"straightenEdges": true
}
}
}
