Connectivity to Snowflake

Example URL

JDBC Driver Connection String

Copy
jdbc:snowflake://accountname.us-east-2.aws.snowflakecomputing.com?db=cdq&warehouse=cdqw

Driver Name

Copy
net.snowflake.client.jdbc.SnowflakeDriver

The previous driver class, com.snowflake.client.jdbc.SnowflakeDriver, is still supported but is deprecated (i.e. it will be removed in a future release, TBD).

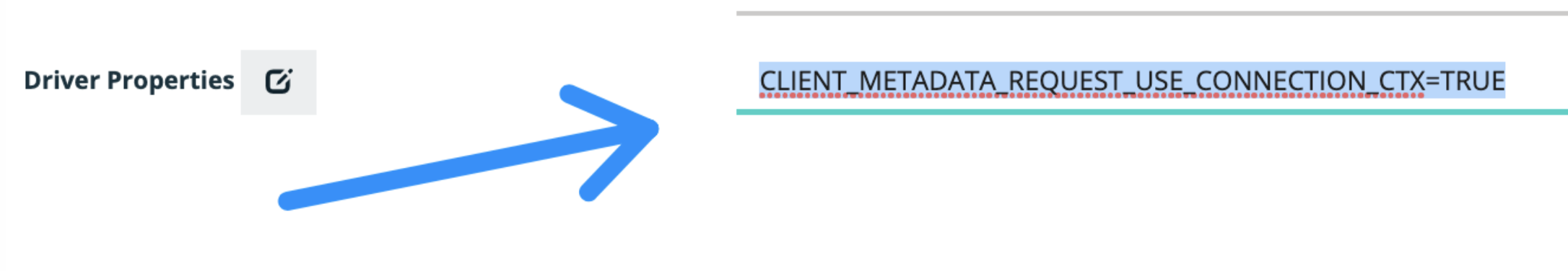

Limit Databases Displayed

Add this connection property to limit the databases and tables displayed in the Explorer view. This will reduce the entries in the Explorer window to only those tables that the user can access.

Copy
CLIENT_METADATA_REQUEST_USE_CONNECTION_CTX=TRUE

Connection Parameters

For documentation on individual connection parameters, see the JDBC Driver Connection Parameter Reference.<account_identifier>

Specifies the account identifier for your Snowflake account. For details, see Account Identifiers. For examples of the account identifier used in a JDBC connection string, see Examples.<connection_params>

Specifies a series of one or more parameters, in the form of <param>=<value>, with each parameter separated by the ampersand character (&), and no spaces anywhere in the connection string.

For documentation on individual connection parameters, see the JDBC Driver Connection Parameter Reference.

Other Parameters

Any session parameter can be included in the connection string. For example:

CLIENT_SESSION_KEEP_ALIVE=<Boolean>

Specifies whether to keep the current session active after a period of inactivity, or to force the user to login again. If the value is true, Snowflake keeps the session active indefinitely, even if there is no activity from the user. If the value is false, the user must log in again after four hours of inactivity.

Default is false.

For descriptions of all the session parameters, see Parameters.

Examples

The following is an example of the connection string that uses an account identifier that specifies the account myaccount in the organization myorganization.

Copy
jdbc:snowflake://myorganization-myaccount.snowflakecomputing.com/?user=peter&warehouse=mywh&db=mydb&schema=public

The following is an example of a connection string that uses the account locator xy12345 as the account identifier:

Copy
jdbc:snowflake://xy12345.snowflakecomputing.com/?user=peter&warehouse=mywh&db=mydb&schema=public

Note that this example uses an account in the AWS US West (Oregon) region. If the account is in a different region or if the account uses a different cloud provider, you need to specify additional segments after the account locator.

Configuring the JDBC Driver -- Snowflake Documentation

Please let us know if you are using private link for Snowflake. Setup can vary depending on the endpoint that is created. In most cases, use the private endpoint as a normal JDBC connection.

Snowflake Community

Here is an example JDBC string connection we used that take into account the following setup:

  • <ACCOUNT_NAME> is the full link to the Snowflake instance with the private link.
  • DQ installed on-prem in a private IaaS and DQ is behind a proxy.
  • If the Snowflake instance is using a private link, whitelist the private link URL to bypass the proxy.
  • In addition to connectivity to the Snowflake instance, the JDBC driver tries to access Snowflake Blob storage by connecting directly to some S3 buckets managed by Snowflake.
  • Those need to be whitelisted as well.

Example URL

jdbc:snowflake://<ACCOUNT_NAME>/?tracing=all&useProxy=true&proxyHost=10.142.22.37&proxyPort=8080&proxyUser=xyz&proxyPassword=xyz&nonProxyHosts=*.privatelink.snowflakecomputing.com%7Csfc-eu-ds1-customer-stage.s3.eu-central-1.amazonaws.com

Configuring Key Pair Authentication

Collibra DQ supports key pair authentication, which is an alternative to basic authentication methods, like username and password, and provides enhanced authentication security.

There are two ways to use key pair authentication on Snowflake connections:

  • Via the Connection URL.
  • Via the Driver Properties.

snowflake key pair authentication methods

Configuring key pair authentication via the Connection URL

The table below shows the properties used to configure key pair authentication with a Connection URL in the New JDBC Connection modal.

Property Description
Connection URL

jdbc:snowflake://<URL>?db=owluserdb&warehouse=owluserdb&authenticator=snowflake_jwt&private_key_file=/<your-file-path>/keytab/snowflake_key.p8&private_key_file_pwd=<your-password>

The file name should include a .p8 extension, as shown in the example above.

Note Connection URL parameters must be appended by ampersand (&).
Username The username for which the private key is created. For example, DQ_User.
Password The password field must be left empty.

Configuring key pair authentication via the Driver Properties

The table below shows the properties used to configure key pair authentication with the Driver Properties in the New JDBC Connection modal.

Property Description
Username The username for which the private key is created. For example, DQ_User.
Password The password field must be left empty.
Driver Properties

authenticator=snowflake_jwt,private_key_file=/<your-file-path>/snowflakeKeys/rsa_key2.p8,private_key_file_pwd=<your-password>

The file name should include a .p8 extension, as shown in the example above.

Note Driver properties must be comma separated, as shown in the example above.
