Connectivity to BigQuery

Steps for the BigQuery Connection

  1. Driver: com.simba.googlebigquery.jdbc42.Driver
  2. Locate your service account owl-gcp.json (your org auth key in JSON format)
  3. Create a JDBC connection (for example only do not use this JDBC URL): jdbc:bigquery://https://www.googleapis.com/bigquery/v2:443;ProjectId=;OAuthType=0;OAuthServiceAcctEmail=<1234567890>[email protected];OAuthPvtKeyPath=/opt/ext/bq-gcp.json;Timeout=86400
  4. Requires a path to a JSON file that contains the service account for authorization. That same file is provided to the Spark session to make a direct to storage connection for maximum parallelism once Core fires up.”

The above and explained there are actually a number of others steps which must be performed to achieve success:

  1. Password for the BigQuery Connector form in Collibra DQ must be a base64 encoded string created from the json file (see step 3. above) and input as password. For example: base64 your_json.json -w 0 or cat your_json.json | base64 -w 0
  2. Check that this JAR exists and is on the path of the Collibra DQ Web UI server (eg. <INSTALL_PATH>/owl/drivers/bigquery/core). Look at your driver directory location which contains this BigQuery JAR: spark-bigquery_2.12-0.18.1.jar
  3. Make sure these JARs present in <INSTALL_PATH>/owl/drivers/bigquery/: ****animal-sniffer-annotations-1.19.jargoogle-api-services-bigquery-v2-rev20201030-1.30.10.jargrpc-google-cloud-bigquerystorage-v1beta1-0.106.4.jarlistenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jarannotations-4.1.1.4.jargoogle-auth-library-credentials-0.22.0.jargrpc-google-cloud-bigquerystorage-v1beta2-0.106.4.jaropencensus-api-0.24.0.jarapi-common-1.10.1.jargoogle-auth-library-oauth2-http-0.22.0.jargrpc-grpclb-1.33.1.jaropencensus-contrib-http-util-0.24.0.jarauto-value-annotations-1.7.4.jarGoogleBigQueryJDBC42.jargrpc-netty-shaded-1.33.1.jarperfmark-api-0.19.0.jaravro-1.10.0.jargoogle-cloud-bigquery-1.125.0.jargrpc-protobuf-1.33.1.jarprotobuf-java-3.13.0.jarchecker-compat-qual-2.5.5.jargoogle-cloud-bigquerystorage-1.6.4.jargrpc-protobuf-lite-1.33.1.jarprotobuf-java-util-3.13.0.jarcommons-codec-1.11.jargoogle-cloud-core-1.93.10.jargrpc-stub-1.33.1.jarproto-google-cloud-bigquerystorage-v1-1.6.4.jarcommons-compress-1.20.jargoogle-cloud-core-http-1.93.10.jargson-2.8.6.jarproto-google-cloud-bigquerystorage-v1alpha2-0.106.4.jarcommons-lang3-3.5.jargoogle-http-client-1.38.0.jarguava-23.0.jarproto-google-cloud-bigquerystorage-v1beta1-0.106.4.jarcommons-logging-1.2.jargoogle-http-client-apache-v2-1.38.0.jarhttpclient-4.5.13.jarproto-google-cloud-bigquerystorage-v1beta2-0.106.4.jarconscrypt-openjdk-uber-2.5.1.jargoogle-http-client-appengine-1.38.0.jarhttpcore-4.4.13.jarproto-google-common-protos-2.0.1.jarcoregoogle-http-client-jackson2-1.38.0.jarj2objc-annotations-1.3.jarproto-google-iam-v1-1.0.3.jarerror_prone_annotations-2.4.0.jargoogle-oauth-client-1.31.1.jarjackson-annotations-2.11.0.jargrpc-alts-1.33.1.jarjackson-core-2.11.3.jarslf4j-api-1.7.30.jarfailureaccess-1.0.1.jargrpc-api-1.33.1.jarjackson-databind-2.11.0.jargax-1.60.0.jargrpc-auth-1.33.1.jarjavax.annotation-api-1.3.2.jarthreetenbp-1.5.0.jargax-grpc-1.60.0.jargrpc-context-1.33.1.jarjoda-time-2.10.1.jargax-httpjson-0.77.0.jargrpc-core-1.33.1.jarjson-20200518.jargoogle-api-client-1.31.1.jargrpc-google-cloud-bigquerystorage-v1-1.6.4.jarjsr305-3.0.2.jar
  4. You may get a CLASSPATH conflict regarding the JAR files.
  5. Make sure the BigQuery connector Scala version matches your Spark Scala version.
    02%20PM

Networking

Please account for these urls from a networking and firewall perspective.

logging.googleapis.com

oauth2.googleapis.com

www.googleapis.com

bigquerystorage.googleapis.com

bigquery.googleapis.com

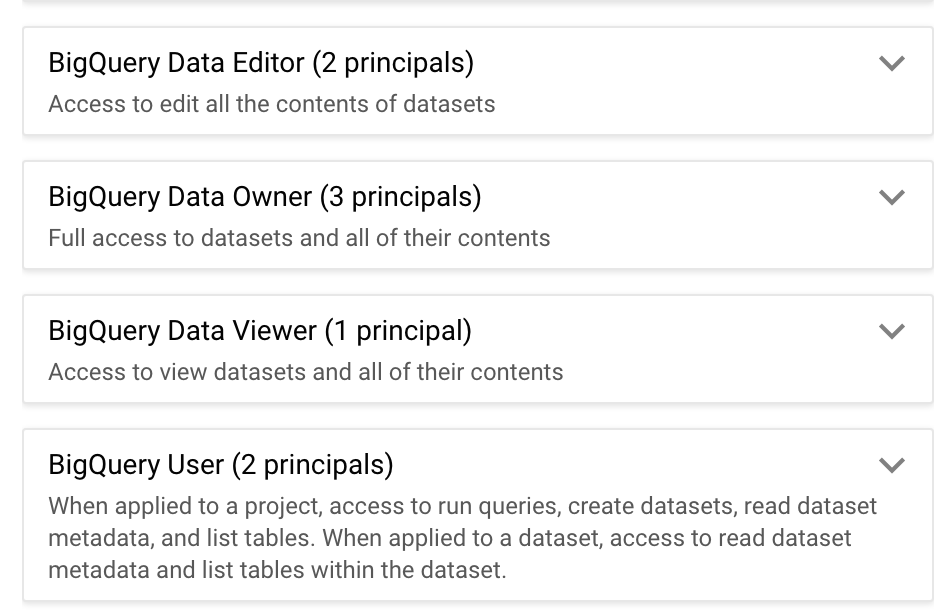

Permissions

Make sure the project and account have appropriate permissions. These are common permissions to provide to the account.

Views

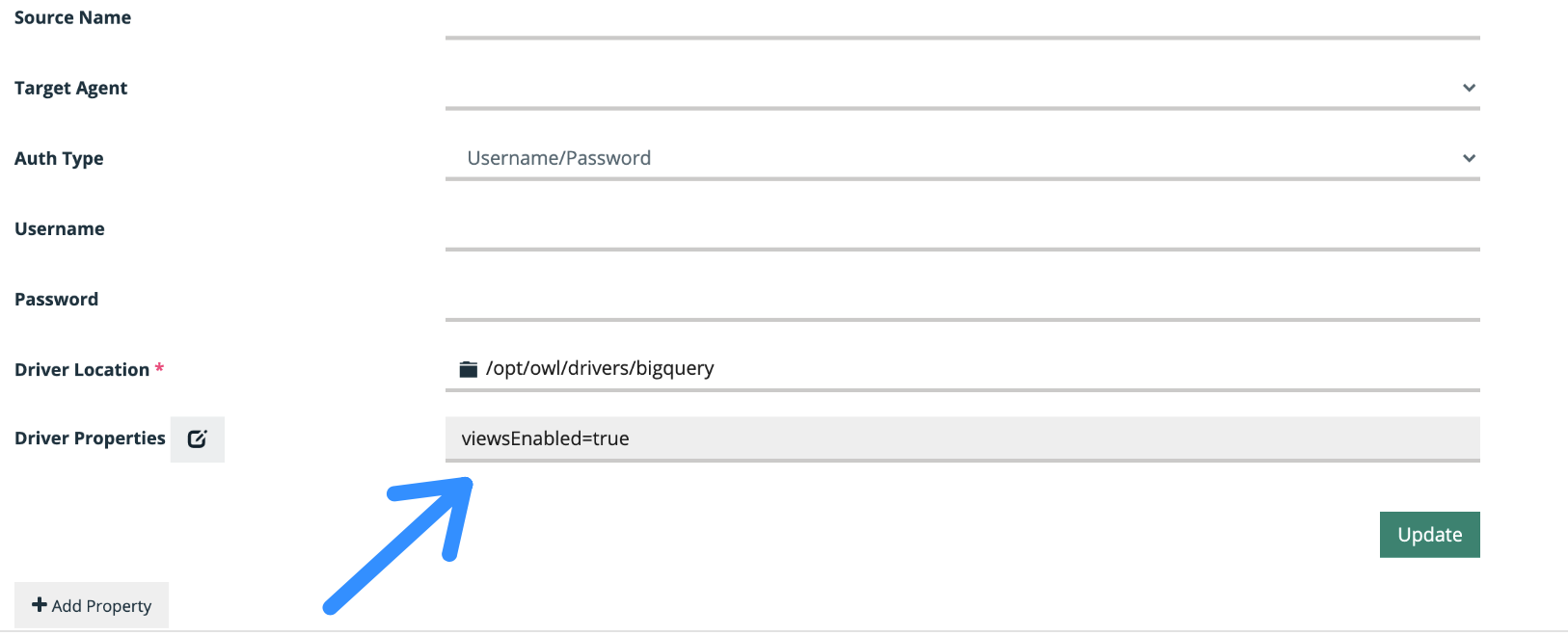

Support for Bigquery views is available from the 2021.11 release and forward. There are Bigquery limitations on creating views from different datasets (collections). Optionally you can add the viewsEnabled=true parameter to the connection property when defining the connection.

Spark Version 2

Warning  Be sure to use the Spark BigQuery connector that is compatible with your version of Spark.
Also when using Spark < 3 and Scala 2.11 please add the following props to the connection properties:dq.bq.legacy=true,viewsEnabled=true
