MicroStrategy operating model
The harvester collects MicroStrategy metadata and sends it to the Collibra Data Lineage service. Collibra processes the metadata and creates new MicroStrategy assets and relations in Data Catalog. You can see them on the asset page overview or visualize them in a diagram or in a technical lineage.
- The assets have the same names as their counterparts in MicroStrategy. You cannot edit Full names and Names in Data Catalog.
- Asset types are only created if you have all specific MicroStrategy and Data Catalog permissions.
- All MicroStrategy assets are created in the same domain.
- Relations that were manually created between MicroStrategy assets and other assets via a relation type in the MicroStrategy operating model, are deleted after synchronizing the MicroStrategy metadata.
MicroStrategy metadata overview

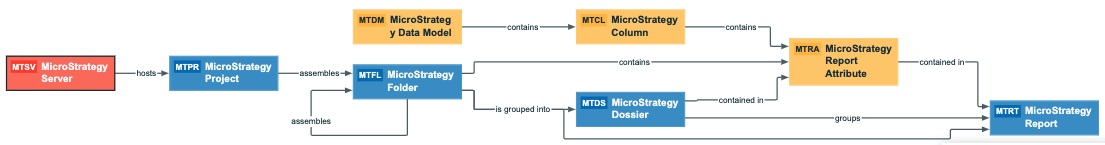

The following image shows the relations between MicroStrategy asset types.
Harvested metadata per asset type
This table shows the harvested MicroStrategy metadata for assets of each MicroStrategy asset type, assuming you have the necessary subscriptions and configurations for a full ingestion.
| Asset type | Harvested MicroStrategy metadata in Data Catalog |
Resource ID |
|---|---|---|
|
MicroStrategy Column Resource ID: 00000000-0000-0000-0000-100000000047 |
Description | 00000000-0000-0000-0000-000000003114 |
| BI Data Model contains / is part of BI Data Attribute | 00000000-0000-0000-0000-000000007196 | |
|
Report Attribute sourced from / is source of Data Attribute |
00000000-0000-0000-0000-120000000010 | |
|
MicroStrategy Data Model Resource ID: 00000000-0000-0000-0000-100000000046 |
Certified (not available yet) |
00000000-0000-0000-0001-000500000001 |
|
Description |
00000000-0000-0000-0000-000000003114 | |
| BI Data Model contains / is part of BI Data Attribute | 00000000-0000-0000-0000-000000007196 | |
|
MicroStrategy Dossier Resource ID: 00000000-0000-0000-0000-100000000043 |
Certified (not available yet) |
00000000-0000-0000-0001-000500000001 |
| Description | 00000000-0000-0000-0000-000000003114 | |
| Business Dimension groups / is grouped into Report | 00000000-0000-0000-0000-120000000002 | |
| Report Attribute contained in / contains Report | 00000000-0000-0000-0000-000000007058 | |
| Report groups / is grouped into Report | 00000000-0000-0000-0000-120000000004 | |
|
MicroStrategy Folder Resource ID: 00000000-0000-0000-0000-100000000042 |
Description |
00000000-0000-0000-0000-000000003114 |
| BI Folder assembles / is assembled in BI Folder | 00000000-0000-0000-0000-120000000001 | |
| BI Folder contains / contained in Data Asset | 00000000-0000-0000-0000-120000000014 | |
|
Business Dimension groups / is grouped into Report |
00000000-0000-0000-0000-120000000002 | |
|
MicroStrategy Project Resource ID: 00000000-0000-0000-0000-100000000041 |
Description |
00000000-0000-0000-0000-000000003114 |
|
Document creation date |
00000000-0000-0000-0000-000000000260 | |
| Document modification date | 00000000-0000-0000-0000-000000000261 | |
| BI Folder assembles / is assembled in BI Folder | 00000000-0000-0000-0000-120000000001 | |
| Server hosts / is hosted in Business Dimension | 00000000-0000-0000-0000-120000000000 | |
|
MicroStrategy Report Resource ID: 00000000-0000-0000-0000-100000000044 |
Certified (not available yet) |
00000000-0000-0000-0001-000500000001 |
|
Description |
00000000-0000-0000-0000-000000003114 | |
| Business Dimension groups / is grouped into Report | 00000000-0000-0000-0000-120000000002 | |
|
Report Attribute contained in / contains Report |
00000000-0000-0000-0000-000000007058 | |
|
Report groups / is grouped into Report |
00000000-0000-0000-0000-120000000004 | |
|
MicroStrategy Report Attribute Resource ID: 00000000-0000-0000-0000-100000000045 |
Description |
00000000-0000-0000-0000-000000003114 |
|
Role in Report |
00000000-0000-0000-0000-000000000266 | |
| BI Folder contains / contained in Data Asset | 00000000-0000-0000-0000-120000000014 | |
| Report Attribute contained in / contains Report | 00000000-0000-0000-0000-000000007058 | |
| Report Attribute sourced from / is source of Data Attribute | 00000000-0000-0000-0000-120000000010 | |
|
MicroStrategy Server Resource ID: 00000000-0000-0000-0000-100000000040 |
Description |
00000000-0000-0000-0000-000000003114 |
| Server hosts / is hosted in Business Dimension | 00000000-0000-0000-0000-120000000000 |
