Validate assets

Validating an asset executes all validation rules assigned to the asset type. If an asset does not meet all validation rules, the asset is invalid.

You can see the validation result on:

  • An asset page’s title bar.
  • As a column, when viewing assets in table display mode.
  • As a field, when viewing assets in tiles display mode.
  • As an overlay in a traceability diagram.

After validation, the dgc.log file will also contain more extensive messages. For more information on how to configure validation logging, see Logging.

Note By default, validation is not automatically triggered when an asset is edited, so you have to revalidate it after editing an asset. However, you can create a workflow for this. To configure validation on certain events, see Getting started with workflows.

Prerequisites

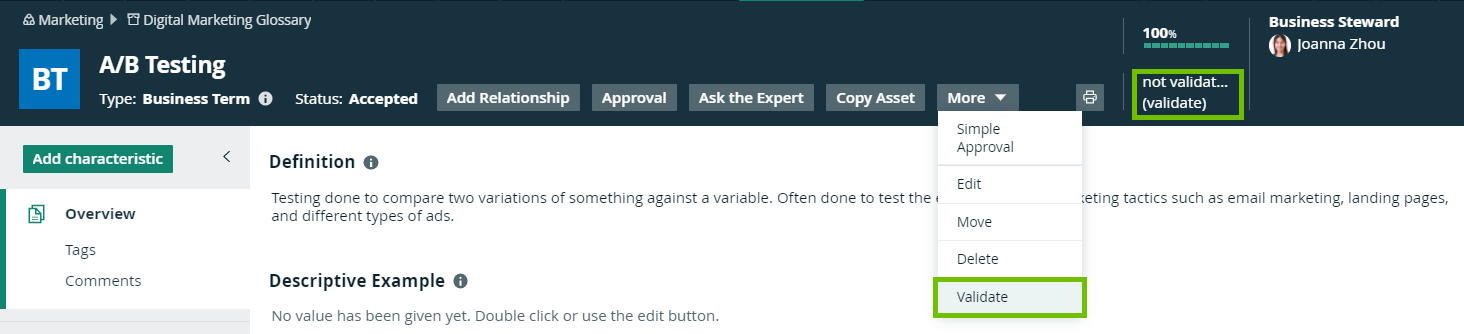

Validate an asset from the asset page

  1. Open an asset page.
  2. In the resource toolbar, click (validate).

Validate one or more assets from an asset table

  1. Open a set of assets in table display mode.
  2. Select checkboxes in front of the assets you want to validate.
  3. In the action toolbar, click Validate.

Validate one or more assets from a set of tiles

  1. Open a set of assets in tile display mode.
  2. Select the assets you want to validate.
  3. In the action toolbar, click Validate.
